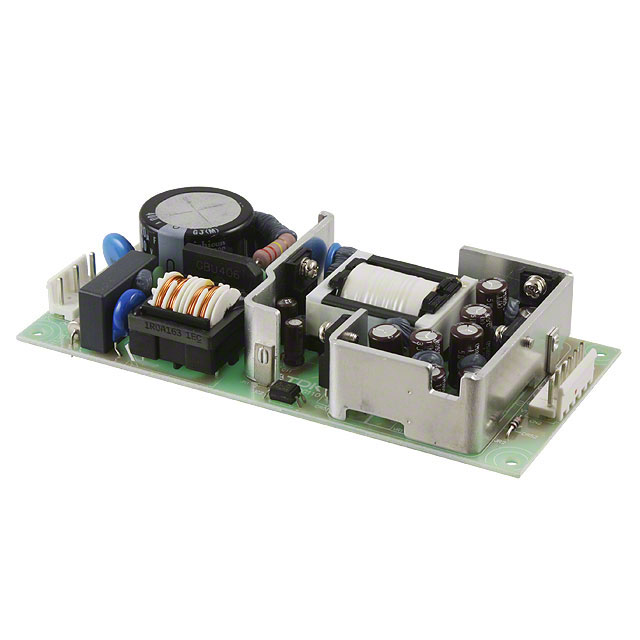

MTW15-51515

TDK-LAMBDA

AC/DC POWER SUPPLY TRIPLE-OUT 5V/15V/-15V 2A/0.3A/0.2A 17.5W 11-PIN

Search across all available documentation for this part.

TDK-LAMBDA

AC/DC POWER SUPPLY TRIPLE-OUT 5V/15V/-15V 2A/0.3A/0.2A 17.5W 11-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	MTW15-51515

Applications	ITE (Commercial)
Current - Output 1	2 A
Current - Output 2	300 mA
Current - Output 3	200 mA
Efficiency	71 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	15 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	26 mm
Size / Dimension [z]	1.02 in
Type	Open Frame
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 1	Voltage - Isolation	Current - Output 2	Voltage - Output 1	Power (Watts)	Current - Output 3	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Output 2	Applications	Efficiency	Features	Mounting Type	Voltage - Output 3	Type
TDK-LAMBDA MTW15-51515-V	127 mm	50 mm	1.97 "	5 in	26 mm	1.02 in	2 A	3000 V	300 mA	5 V	15 W	200 mA	85 VAC	265 VAC	-10 °C	70 °C	3	15 V	ITE (Commercial)	71 %	Adjustable Output PFC Universal Input	Chassis Mount	-15 V	Open Frame
TDK-LAMBDA MTW15-51515	127 mm	50 mm	1.97 "	5 in	26 mm	1.02 in	2 A	3000 V	300 mA	5 V	15 W	200 mA	85 VAC	265 VAC	-10 °C	70 °C	3	15 V	ITE (Commercial)	71 %	Adjustable Output PFC Universal Input	Chassis Mount	-15 V	Open Frame
TDK-LAMBDA MTW15-51212-V	127 mm	50 mm	1.97 "	5 in	26 mm	1.02 in	2 A	3000 V	300 mA	5 V	15 W	200 mA	85 VAC	265 VAC	-10 °C	70 °C	3	12 V	ITE (Commercial)	71 %	Adjustable Output PFC Universal Input	Chassis Mount	-12 V	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5V 15V -15V 85 ~ 265 VAC Input
