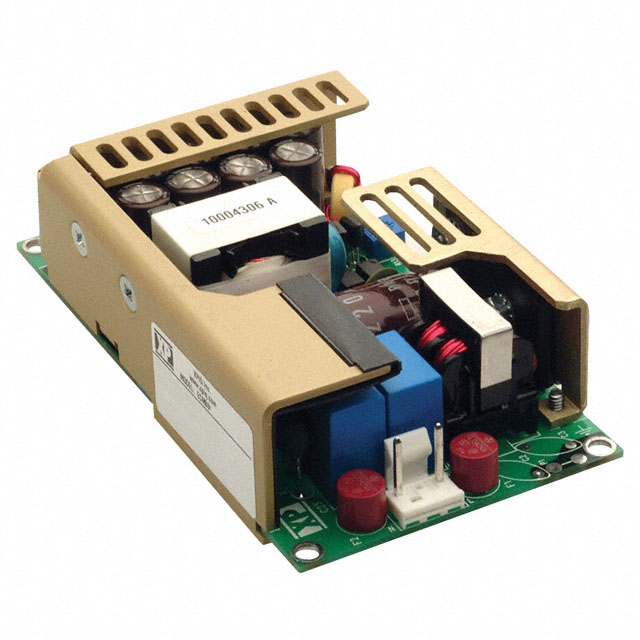

ECM100US33

Active

XP POWER

AC/DC CONVERTER 33V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECM(40 - 100) Series TUV Certificate +1

ECM100US33

Active

XP POWER

AC/DC CONVERTER 33V 100W

Deep-Dive with AI

DocumentsDatasheet ECM(40 - 100) Series TUV Certificate +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECM100US33

Applications	ITE (Commercial), Medical
Approval Agency	CE, CB
Current - Output 1	3 A
Efficiency	80 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	100 W
Size / Dimension [x]	114.3 mm
Size / Dimension [x]	4.5 in
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	33 V

ECM100 Series

Part	Current - Output 1	Applications	Voltage - Output 1	Current - Output 3	Standard Number	Efficiency	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Features	Number of Outputs	Current - Output 2	Mounting Type	Voltage - Output 3	Approval Agency	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Type	Current - Output 4	Voltage - Output 4	For Use With/Related Products	Accessory Type
XP POWER ECM100UT31	10 A	ITE (Commercial) Medical	5 V	800 mA	62368-1	80 %	80 W 100 W	264 VAC 370 VDC	90 VAC 120 VDC	114.3 mm	2.5 in	63.5 mm	30.5 mm	1.2 "	4.5 in	Universal Input	3	3 A	Chassis Mount	-12 V	CB CE	12 V	70 °C	0 °C	4000 V	Open Frame
XP POWER ECM100UQ45	10 A	ITE (Commercial) Medical	5 V	800 mA	62368-1	80 %	80 W 100 W	264 VAC 370 VDC	90 VAC 120 VDC	114.3 mm	2.5 in	63.5 mm	30.5 mm	1.2 "	4.5 in	Universal Input	4	3 A	Chassis Mount	-12 V	CB CE	12 V	70 °C	0 °C	4000 V	Open Frame	500 mA	-5 V
XP POWER ECM100US48	2.1 A	ITE (Commercial) Medical	48 V		62368-1	80 %	100 W	264 VAC 370 VDC	90 VAC 120 VDC	114.3 mm	2.5 in	63.5 mm	30.5 mm	1.2 "	4.5 in	Adjustable Output Universal Input	1		Chassis Mount		CB CE		70 °C	0 °C	4000 V	Open Frame
XP POWER ECM100UQ44	10 A	ITE (Commercial) Medical	5 V	800 mA	62368-1	80 %	80 W 100 W	264 VAC 370 VDC	90 VAC 120 VDC	114.3 mm	2.5 in	63.5 mm	30.5 mm	1.2 "	4.5 in	Universal Input	4	2 A	Chassis Mount	15 V	CB CE	24 V	70 °C	0 °C	4000 V	Open Frame	500 mA	-15 V
XP POWER ECM100UQ43	10 A	ITE (Commercial) Medical	5 V	800 mA	62368-1	80 %	80 W 100 W	264 VAC 370 VDC	90 VAC 120 VDC	114.3 mm	2.5 in	63.5 mm	30.5 mm	1.2 "	4.5 in	Universal Input	4	2 A	Chassis Mount	12 V	CB CE	24 V	70 °C	0 °C	4000 V	Open Frame	500 mA
XP POWER ECM100S CONKIT																													ECM100 Series Power Supplies	Connector Kit
XP POWER ECM100UT34	10 A	ITE (Commercial) Medical	3.3 V	800 mA	62368-1	80 %	80 W 100 W	264 VAC 370 VDC	90 VAC 120 VDC	114.3 mm	2.5 in	63.5 mm	30.5 mm	1.2 "	4.5 in	Universal Input	3	5 A	Chassis Mount	12 V	CB CE	5 V	70 °C	0 °C	4000 V	Open Frame
XP POWER ECM100DT LOOM																													ECM Series Power Supplies	Wire Harness
XP POWER ECM100US33	3 A	ITE (Commercial) Medical	33 V		62368-1	80 %	100 W	264 VAC 370 VDC	90 VAC 120 VDC	114.3 mm	2.5 in	63.5 mm	30.5 mm	1.2 "	4.5 in	Adjustable Output Universal Input	1		Chassis Mount		CB CE		70 °C	0 °C	4000 V	Open Frame
XP POWER ECM100US18	5.5 A	ITE (Commercial) Medical	18 V		62368-1	80 %	100 W	264 VAC 370 VDC	90 VAC 120 VDC	114.3 mm	2.5 in	63.5 mm	30.5 mm	1.2 "	4.5 in	Adjustable Output Universal Input	1		Chassis Mount		CB CE		70 °C	0 °C	4000 V	Open Frame

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 111.48
		5	$ 108.14
		10	$ 104.79
		25	$ 100.33
		100	$ 93.64
