1080440-1
ActiveTE Connectivity AMP Connectors

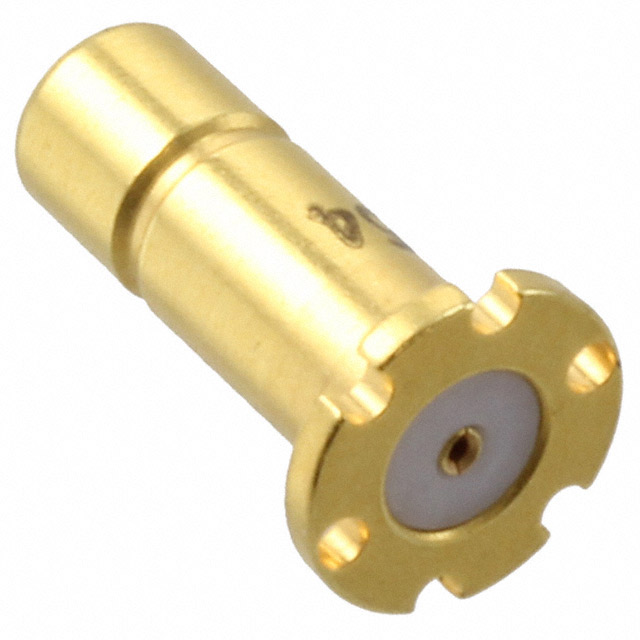

CONN SMB RCPT STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1080440-1
ActiveTE Connectivity AMP Connectors
CONN SMB RCPT STR 50 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1080440-1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Field Replaceable, For Hermetically Sealed Pin |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.3 dB |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Screw |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1080 Series
CONN SMB RCPT STR 50 OHM SMD
| Part | Impedance | Housing Color | Insertion Loss | Contact Termination | Features | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Connector Style | Dielectric Material | Center Contact Material | Connector Type | Mounting Type | Center Contact Plating | Fastening Type | Mating Cycles | Body Material | Shield Termination | Body Finish | Voltage Rating | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1080440-1 | 50 Ohms | Gold | 0.3 dB | Compression | Field Replaceable, For Hermetically Sealed Pin | 1 | -65 ░C | 165 °C | Flange | SMB | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Male Pin, Receptacle | Surface Mount | Gold | Snap-On | 500 | Brass | Screw | Gold | 335 V | 4 GHz |
Description
General part information
1080 Series
SMB Connector Receptacle, Male Pin 50 Ohms Surface Mount Compression
