Technical Specifications
Parameters and characteristics for this part

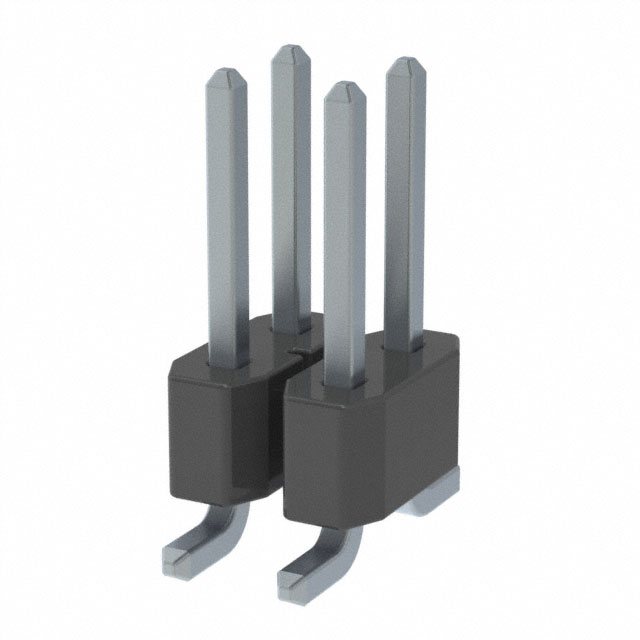

| Specification | TSM-102-01-TM-DV-TR |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
TSM-105 Series
Headers & Wire Housings .100" Surface Mount Terminal Strip
...
| Part | Material Flammability Rating | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Finish - Mating | Number of Positions Loaded | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Material | Insulation Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Mounting Type | Shrouding | Style | Number of Rows | Contact Shape | Contact Length - Mating | Contact Length - Mating | Termination | Insulation Material | Features | Number of Positions | Number of Positions Loaded | Contact Length - Mating [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | UL94 V-0 | Male Pin | 30 Áin | 0.76 Ám | Tin | Gold | 4 | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Cuttable Header | -55 °C | 125 °C | 0.1 in | 2.54 mm | Surface Mount | Unshrouded | Board to Board Cable | 1 | Square | 3.05 mm | 0.12 in | Solder | Liquid Crystal Polymer (LCP) | ||||||||
Samtec Inc. | UL94 V-0 | Male Pin | Tin | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Header | -55 °C | 105 ░C | 0.24 in | 6.1 mm | Surface Mount Right Angle | Unshrouded | Board to Board Cable | 2 | Square | 5.84 mm | Solder | Liquid Crystal Polymer (LCP) | Board Lock Pick and Place | 10 | All | 0.23 in | 2.54 mm | 0.1 in | |||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||
Samtec Inc. | UL94 V-0 | Male Pin | 30 Áin | 0.76 Ám | Tin | Gold | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Header | -55 °C | 125 °C | 0.12 in | 3.05 mm | Surface Mount Right Angle | Unshrouded | Board to Board Cable | 1 | Square | 8.13 mm | 0.32 in | Solder | Liquid Crystal Polymer (LCP) | All | ||||||||
Samtec Inc. | UL94 V-0 | Male Pin | Tin | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Header | -55 °C | 105 ░C | 0.24 in | 6.1 mm | Surface Mount Right Angle | Unshrouded | Board to Board Cable | 2 | Square | 5.84 mm | Solder | Liquid Crystal Polymer (LCP) | Pick and Place | 10 | All | 0.23 in | 2.54 mm | 0.1 in | |||||||
Samtec Inc. | UL94 V-0 | Male Pin | 30 Áin | 0.76 Ám | Tin | Gold | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Cuttable Header | -55 °C | 125 °C | 0.1 in | 2.54 mm | Surface Mount | Unshrouded | Board to Board Cable | 1 | Square | 10.67 mm | 0.42 in | Solder | Liquid Crystal Polymer (LCP) | 10 | All | |||||||
Samtec Inc. | UL94 V-0 | Male Pin | 10 çin | 0.25 çm | Tin | Gold | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Cuttable Header | -55 °C | 125 °C | 0.1 in | 2.54 mm | Surface Mount | Unshrouded | Board to Board Cable | 2 | Square | 5.84 mm | Solder | Liquid Crystal Polymer (LCP) | 10 | All | 0.23 in | 2.54 mm | 0.1 in | |||||
Samtec Inc. | UL94 V-0 | Male Pin | 10 çin | 0.25 çm | Gold | Gold | 9 | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Cuttable Header | -55 °C | 125 °C | 0.1 in | 2.54 mm | Surface Mount | Unshrouded | Board to Board Cable | 2 | Square | 5.84 mm | Solder | Liquid Crystal Polymer (LCP) | Pick and Place | 10 | 0.23 in | 2.54 mm | 0.1 in | 3 µin | 0.076 µm | ||
Samtec Inc. | UL94 V-0 | Male Pin | Tin | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Cuttable Header | -55 °C | 105 ░C | 0.1 in | 2.54 mm | Surface Mount | Unshrouded | Board to Board Cable | 1 | Square | 3.05 mm | 0.12 in | Solder | Liquid Crystal Polymer (LCP) | Pick and Place | All | ||||||||||
Samtec Inc. | UL94 V-0 | Male Pin | 30 Áin | 0.76 Ám | Tin | Gold | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | Black | Header | -55 °C | 125 °C | 0.12 in | 3.05 mm | Surface Mount Right Angle | Unshrouded | Board to Board Cable | 1 | Square | 5.84 mm | Solder | Liquid Crystal Polymer (LCP) | Board Guide Pick and Place | All | 0.23 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TSM-105 Series
Headers & Wire Housings .100" Surface Mount Terminal Strip
