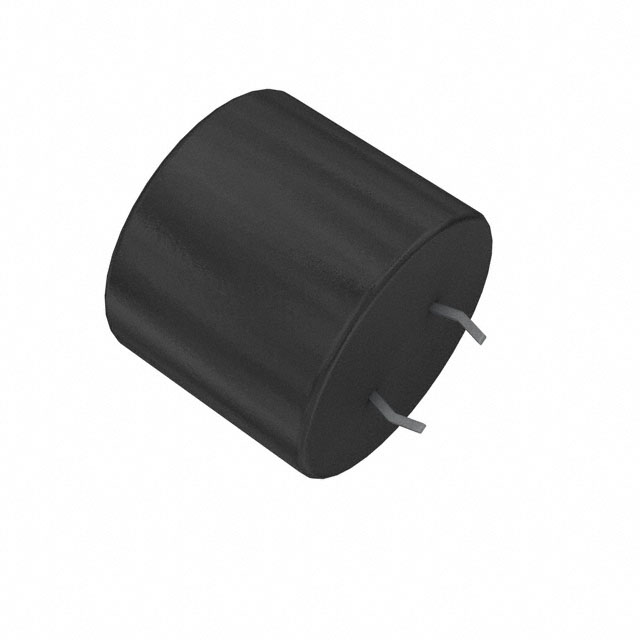

PEH534VCB3150M2

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 400V, 20% +TOL, 20% -TOL, 150UF, THROUGH HOLE MOUNT, ROHS COMPLIANT

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 400V, 20% +TOL, 20% -TOL, 150UF, THROUGH HOLE MOUNT, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	PEH534VCB3150M2

Applications	General Purpose
Capacitance	150 µF
ESR (Equivalent Series Resistance)	680 mOhm
Height - Seated (Max) [Max] [z]	0.984 "
Height - Seated (Max) [Max] [z]	25 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ Low Frequency	800 mA
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Tolerance	20 %
Voltage - Rated	400 V

Part	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Tolerance	Voltage - Rated	Lifetime @ Temp.	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Polarization	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency
KEMET PEH534VCD3220M2	460 mOhm	30 mm	1.181 inches	0.394 in	10 mm	20 %	400 V	2000 Hrs	Through Hole	35 mm	1.378 in	220 µF	Polar	Radial Can - Snap-In	General Purpose	-40 °C	105 ░C	1 A
KEMET PEH534VCB3150M2	680 mOhm	30 mm	1.181 inches	0.394 in	10 mm	20 %	400 V	2000 Hrs	Through Hole	25 mm	0.984 "	150 µF	Polar	Radial Can - Snap-In	General Purpose	-40 °C	105 ░C	800 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.40
Newark	Each	1000	$ 4.89
		2500	$ 4.55

General part information

150 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 680mOhm @ 100Hz 2000 Hrs @ 105°C
