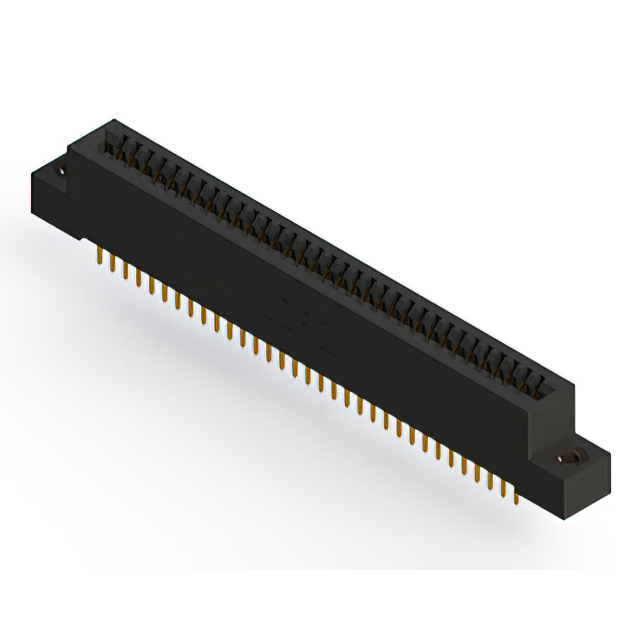

892-066-521-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-066-521-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-066-521-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-066 Series

Part	Contact Material	Contact Type	Material - Insulation	Mounting Type	Termination	Termination Rows	Contact Finish	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Number of Rows	Read Out	Contact Finish Thickness	Contact Finish Thickness	Features	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 892-066-555-201	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Solder	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám	Card Extender	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in
EDAC Inc. 892-066-523-203	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Solder	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 892-066-523-202	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Solder	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 892-066-523-208	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Solder	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-066-523-204	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Solder	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 892-066-521-207	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Solder	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-066-541-201	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Wire Wrap	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in
EDAC Inc. 892-066-520-207	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Solder	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-066-540-201	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Wire Wrap	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in
EDAC Inc. 892-066-521-202	Copper Alloy	Cantilever	Polyphenylene Sulfide (PPS)	Through Hole	Solder	2	Gold	Female	125 °C	-40 °C	Non Specified - Dual Edge	2	Dual	10 Áin	0.25 Ám		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	66	33	2.54 mm	0.1 in	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 90.45
Newark	Each	1	$ 108.55
		100	$ 80.73
		250	$ 69.95
		500	$ 60.14
		1000	$ 43.88

Description

General part information

892-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
