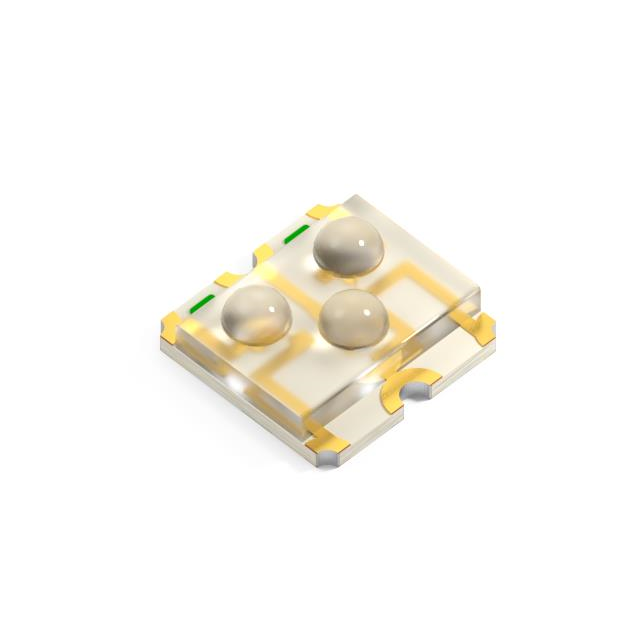

XZFBBM2ACRDG92W-3
ActiveSunLED
LED RGB CLEAR 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFBBM2ACRDG92W-3
ActiveSunLED
LED RGB CLEAR 6SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFBBM2ACRDG92W-3 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] | 1.25 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 1890 mcd |
| Millicandela Rating [custom] | 497 mcd |
| Millicandela Rating [custom] | 1590 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 3.5 mm |
| Supplier Device Package | 6-SMD |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.3 V |
| Wavelength - Dominant | 525 nm, 625 nm, 470 nm |
| Wavelength - Peak [custom] | 640 nm |
| Wavelength - Peak [custom] | 520 nm |
| Wavelength - Peak [custom] | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.16 | |
| 10 | $ 1.44 | |||
| 100 | $ 1.11 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 2.16 | ||
| 10 | $ 1.44 | |||
| 100 | $ 1.11 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.86 | |||
| Tape & Reel (TR) | 2000 | $ 0.81 | ||
| 6000 | $ 0.80 | |||
| 10000 | $ 0.78 | |||
Description
General part information
XZFBBM2 Series
Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.2V Green, 3.3V Blue 6-SMD, No Lead
