8762MN 0061000

Active

Belden Inc.

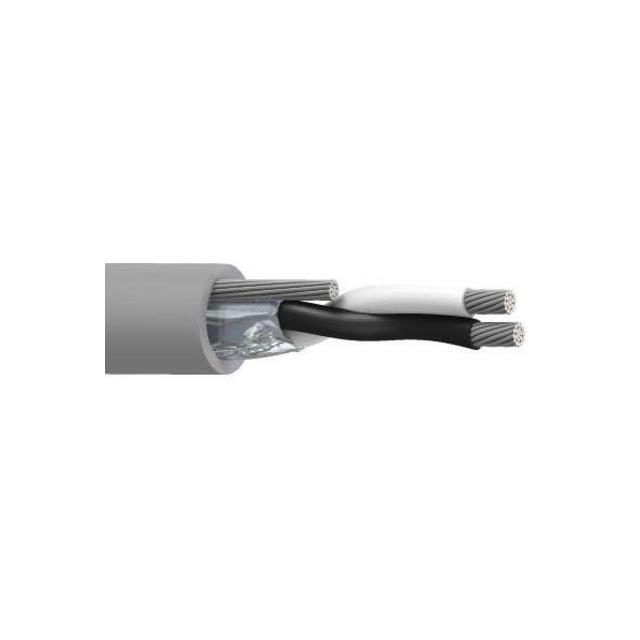

CABLE 2CON 20AWG BLUE SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 20AWG BLUE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	8762MN 0061000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Features	Drain Wire
Jacket (Insulation) Diameter	0.149 "
Jacket (Insulation) Diameter	3.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Blue
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2937
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Voltage	Ratings	Conductor Insulation	Cable Type	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Conductor Material	Length	Length	Number of Conductors	Features	Jacket (Insulation) Material	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Wire Gauge	Conductor Strand	Shield Type	Length [x]	Length [x]
Belden Inc. 8762MN 0061000	300 V	UL Style 2937	Polypropylene (PP)	Multi-Conductor	Audio Control Instrumentation	-20 C	80 C	100 %	Copper Tinned	1000 ft	304.8 m	2	Drain Wire	Poly-Vinyl Chloride (PVC)	Aluminum	0.406 mm	0.016 in	Blue	0.149 "	3.78 mm	20 AWG	26 34 AWG	Foil
Belden Inc. 8762MN 006100	300 V	UL Style 2937	Polypropylene (PP)	Multi-Conductor	Audio Control Instrumentation	-20 C	80 C	100 %	Copper Tinned			2	Drain Wire	Poly-Vinyl Chloride (PVC)	Aluminum	0.406 mm	0.016 in	Blue	0.149 "	3.78 mm	20 AWG	26 34 AWG	Foil	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.41

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Blue 20 AWG Foil 1000.0' (304.8m)
