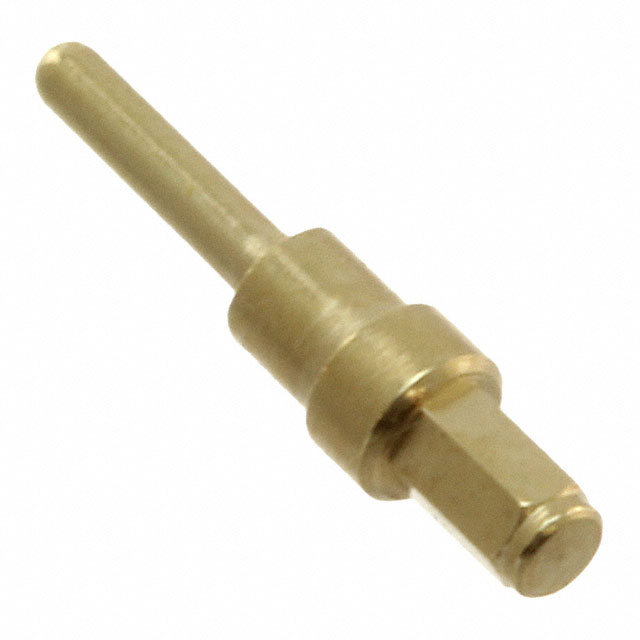

6025-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN SINGLE POST 0.040DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6025-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.36 mm |
| Flange Diameter [diameter] | 0.093 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 4.78 mm |
| Length - Above Flange | 0.188 " |
| Length - Below Flange [x] | 0.1 in |
| Length - Below Flange [x] | 2.54 mm |
| Length - Overall [x] | 10.64 mm |
| Length - Overall [x] | 0.419 " |
| Mounting Hole Diameter [diameter] | 1.73 mm |
| Mounting Hole Diameter [diameter] | 0.068 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Pin Size - Below Flange | 0.067 in |
| Pin Size - Below Flange | 1.7 mm |
| Terminal Style | Flanged, Pin Retention |
| Terminal Type | Single Post |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.43 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| 2500 | $ 0.19 | |||
Description
General part information
6025-0 Series
Single Post Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
Documents
Technical documentation and resources
No documents available
