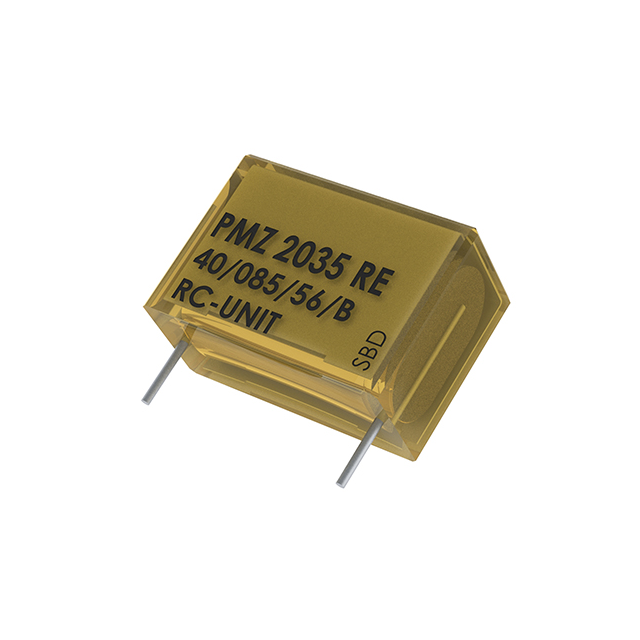

PMZ2035RE6100K150R30 - PMZ2035RE6100K150R06

PMZ2035RE6100K150R30

Obsolete
KEMET

METALLIZED POLYESTER FILM CAPACITOR DESIGNED FOR A.C. APPLICATIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPMZ2035RE6100K150R30 SpecP435EJ104K440AH151+1
PMZ2035RE6100K150R30 - PMZ2035RE6100K150R06

PMZ2035RE6100K150R30

Obsolete
KEMET

METALLIZED POLYESTER FILM CAPACITOR DESIGNED FOR A.C. APPLICATIONS

Deep-Dive with AI

DocumentsPMZ2035RE6100K150R30 SpecP435EJ104K440AH151+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPMZ2035RE6100K150R30
ApplicationsEMI, RFI Suppression
Capacitance100000 pF
Dielectric MaterialPaper, Metallized
Height - Seated (Max) [Max]19 mm
Height - Seated (Max) [Max]0.748 in
Lead Spacing25.4 mm
Lead Spacing1 in
Mounting TypeThrough Hole
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Package / CaseRadial
RatingsX1
Size / Dimension [x]1.201 in
Size / Dimension [x]30.5 mm
Size / Dimension [y]12.1 mm
Size / Dimension [y]0.476 in
TerminationPC Pins
Tolerance10 %
Voltage Rating - AC440 V
Voltage Rating - DC1 kVDC
Voltage Rating - DC1 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 16$ 3.92
300$ 3.92

Description

General part information

PMZ2035 Series

0.1 µF Film Capacitor 440V 1000V (1kV) Paper, Metallized Radial
