0086-4-17-01-30-27-02-0

Active

Mill-Max Manufacturing Corp.

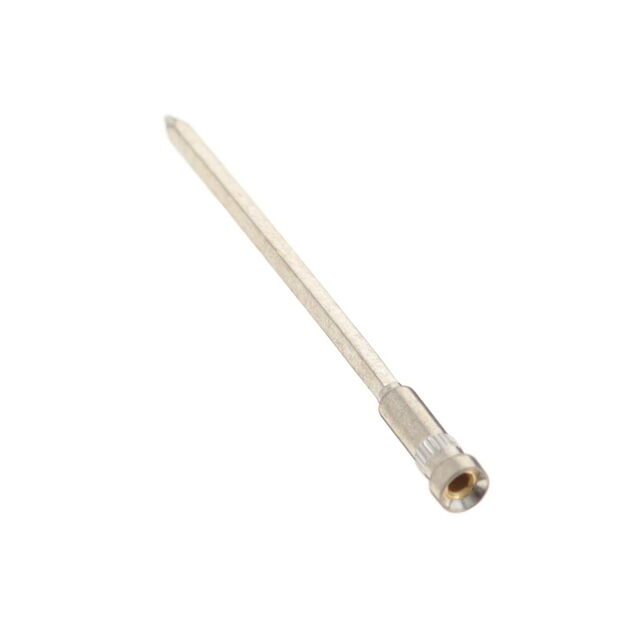

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0086-4-17-01-30-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.46
		10	$ 1.23
		25	$ 1.18
		50	$ 1.16
		100	$ 1.11
		250	$ 1.01
		500	$ 0.91
		1000	$ 0.81
		3000	$ 0.73

Description

General part information

0086-4 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0086-4-17-01-30-27-02-0	0086-4 Series

Accepts Pin Diameter [Max]	0.025 "	0.025 "
Accepts Pin Diameter [Max]	0.64 mm	0.64 mm
Accepts Pin Diameter [Min]	0.015 "	0.015 "
Accepts Pin Diameter [Min]	0.38 mm	0.38 mm
Contact Finish	Gold	Gold, Tin-Lead
Contact Finish Thickness	0.76 Ám	0.25 - 2.54 Ám
Contact Finish Thickness	30 Áin	10 - 100 Áin
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter [diameter]	1.8 mm	1.8 mm
Flange Diameter [diameter]	0.071 in	0.071 in
Length - Overall [x]	20.9 mm	20.9 mm
Length - Overall [x]	0.823 in	0.823 in
Mounting Hole Diameter [diameter]	0.057 "	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm	1.45 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	0.162 in	0.162 in
Socket Depth	4.12 mm	4.12 mm
Tail Diameter	0.64 mm	0.64 mm
Tail Diameter	0.025 in	0.025 in
Tail Type	Wire Wrap	Wire Wrap
Termination	Press-Fit	Press-Fit

0086-4 Series

CONN PIN RCPT .015-.025 PRESSFIT

Part	Termination	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Contact Material	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter	Tail Diameter	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0086-4-17-15-30-27-02-0	Press-Fit	Gold	-55 °C	125 °C	20.9 mm	0.823 in	Beryllium Copper	0.162 in	4.12 mm	0.76 Ám	30 Áin	0.025 "	0.64 mm	0.015 "	0.38 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	Wire Wrap	1.8 mm	0.071 in
Mill-Max Manufacturing Corp. 0086-4-17-01-30-27-02-0	Press-Fit	Gold	-55 °C	125 °C	20.9 mm	0.823 in	Beryllium Copper	0.162 in	4.12 mm	0.76 Ám	30 Áin	0.025 "	0.64 mm	0.015 "	0.38 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	Wire Wrap	1.8 mm	0.071 in
Mill-Max Manufacturing Corp. 0086-4-17-01-30-02-02-0	Press-Fit	Tin-Lead	-55 °C	125 °C	20.9 mm	0.823 in	Beryllium Copper	0.162 in	4.12 mm	2.54 µm	100 µin	0.025 "	0.64 mm	0.015 "	0.38 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	Wire Wrap	1.8 mm	0.071 in
Mill-Max Manufacturing Corp. 0086-4-17-15-30-14-02-0	Press-Fit	Gold	-55 °C	125 °C	20.9 mm	0.823 in	Beryllium Copper	0.162 in	4.12 mm	0.25 Ám	10 Áin	0.025 "	0.64 mm	0.015 "	0.38 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	Wire Wrap	1.8 mm	0.071 in
Mill-Max Manufacturing Corp. 0086-4-17-80-30-27-02-0	Press-Fit	Gold	-55 °C	125 °C	20.9 mm	0.823 in	Beryllium Copper	0.162 in	4.12 mm	0.76 Ám	30 Áin	0.025 "	0.64 mm	0.015 "	0.38 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	Wire Wrap	1.8 mm	0.071 in
Mill-Max Manufacturing Corp. 0086-4-17-01-30-14-02-0	Press-Fit	Gold	-55 °C	125 °C	20.9 mm	0.823 in	Beryllium Copper	0.162 in	4.12 mm	0.25 Ám	10 Áin	0.025 "	0.64 mm	0.015 "	0.38 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	Wire Wrap	1.8 mm	0.071 in
