337-060-521-802

Active

EDAC Inc.

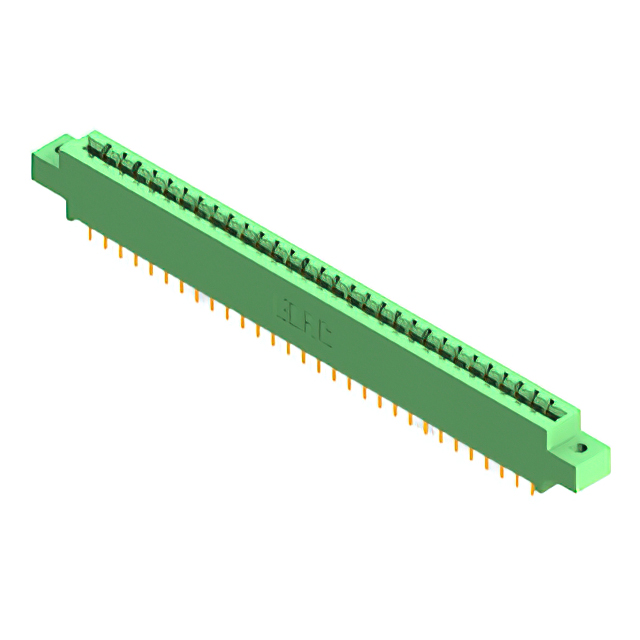

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

337-060-521-802

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-060-521-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

337-060 Series

...

Part	Termination Rows	Pitch [x]	Pitch [x]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions/Bay/Row [custom]	Gender	Contact Type	Color	Number of Positions	Number of Rows	Material - Insulation	Read Out	Card Type	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 337-060-521-802	2	0.156 in	3.96 mm	Solder	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 in
EDAC Inc. 337-060-544-804	2	0.156 in	3.96 mm	Wire Wrap	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in			0.156 in	Top Mount Opening Unthreaded	3.96 mm
EDAC Inc. 337-060-541-203	2	0.156 in	3.96 mm	Wire Wrap	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in			0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 337-060-523-803	2	0.156 in	3.96 mm	Solder	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in			0.116 in	Floating Bobbin Top Mount Opening	2.95 mm
EDAC Inc. 337-060-524-808	2	0.156 in	3.96 mm	Solder	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in				4-40 Threaded Insert Top Mount Opening
EDAC Inc. 337-060-520-207	2	0.156 in	3.96 mm	Solder	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in				Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 337-060-556-807	2	0.156 in	3.96 mm	Solder	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Board Edge Straddle Mount	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in				M3 Threaded Insert Top Mount Opening		Card Extender
EDAC Inc. 337-060-558-212	2	0.156 in	3.96 mm	Wire Wrap	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Through Hole Right Angle	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in			0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm
EDAC Inc. 337-060-556-212	2	0.156 in	3.96 mm	Solder	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Board Edge Straddle Mount	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in			0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Card Extender
EDAC Inc. 337-060-523-212	2	0.156 in	3.96 mm	Solder	-40 °C	105 ░C	Copper Alloy	30	Female	Cantilever	Green	60	2	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	Gold	Through Hole	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in			0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.09
Newark	Each	1	$ 12.56
		100	$ 7.96
		250	$ 5.53
		500	$ 4.53
		1000	$ 3.85

Description

General part information

337-060 Series

60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
