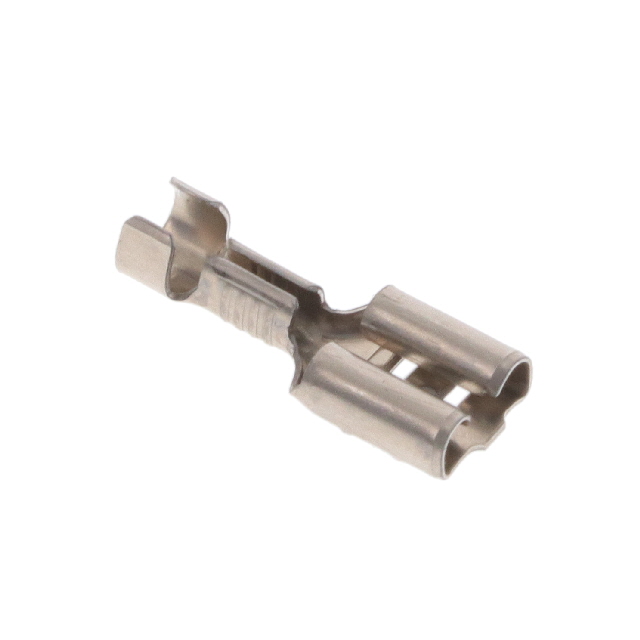

Specification	4-1377174-6

Contact Finish	Nickel
Contact Material	Steel
Gender	Female
Insulation	Non-Insulated
Insulation Diameter (Max)	0.169 in
Insulation Diameter (Min)	0.118 in
Length - Overall	0.795 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.303 in
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	17 AWG
Wire Gauge (AWG) (Min)	14 AWG

1377174 Series

Part	Insulation Diameter	Tab Width	Contact Finish	Tab Thickness	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Gender	Color	Terminal Type	Contact Material	Length - Overall	Tab Length	Insulation	Termination	Mounting Type	Insulation Diameter (Min)	Insulation Diameter (Max)	Terminal Angle	Convert From (Adapter End) Connector Type	Convert From (Adapter End) Type	Convert From (Adapter End) Pin Gender	Convert From (Adapter End) Size	Convert From (Adapter End) Pin Count (Total)	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Convert To (Adapter End) Size
TE Connectivity AMP Connectors 9-1377174-6	0.169 in	0.11 in	Tin	0.02 in	16 AWG	14 AWG	Female	Blue	Standard	Phosphor Bronze	0.78 in	0.248 in	Non-Mating End Insulated	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 7-1377174-7		0.11 in	Tin	0.032 in	26 AWG	22 AWG	Female	Yellow	Standard	Brass	0.685 in	0.248 in	Non-Mating End Insulated	Crimp	Free Hanging (In-Line)	0.043 in	0.083 in
TE Connectivity AMP Connectors 8-1377174-7		0.187 in	Tin	0.032 in	22 AWG	16 AWG	Female	Red	Standard	Brass	0.822 in	0.25 in	Non-Mating End Insulated	Crimp	Free Hanging (In-Line)	0.105 in	0.14 in
TE Connectivity AMP Connectors 5-1377174-1		0.25 in		0.032 in			Male		Angled -	Brass		0.311 in	Non-Insulated	Rivet Screw Stud	Board Chassis			45 °
TE Connectivity AMP Connectors 6-1377174-2		0.25 in		0.032 in			Male		Angled -	Brass		0.307 in	Non-Insulated	Rivet Screw Stud	Board Chassis			45 °
TE Connectivity AMP Connectors 9-1377174-5	0.169 in	0.11 in	Tin	0.02 in	16 AWG	14 AWG	Female	Blue	Standard	Brass	0.78 in	0.25 in	Non-Mating End Insulated	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 6-1377174-7													Insulated						(6.35mm) 1/4" Quick Connect Male (2)	0.25" (6.35mm) 1/4" Quick Connect Male	Male	0.25 "	2 pins	(6.35mm) 1/4" Quick Connect	Male (2)	6.35 mm
TE Connectivity AMP Connectors 9-1377174-5		0.11 in	Tin	0.02 in	16 AWG	14 AWG	Female	Blue	Standard	Brass	0.78 in	0.25 in	Non-Mating End Insulated	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 9-1377174-0		0.197 in	Tin	0.032 in	22 AWG	17 AWG	Female	Blue	Standard	Phosphor Bronze			Non-Mating End Insulated	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 8-1377174-0	0.14 in	0.11 in	Tin	0.016 in	22 AWG	16 AWG	Female	Red	Standard	Brass	0.78 in	0.248 in	Non-Mating End Insulated	Crimp	Free Hanging (In-Line)
