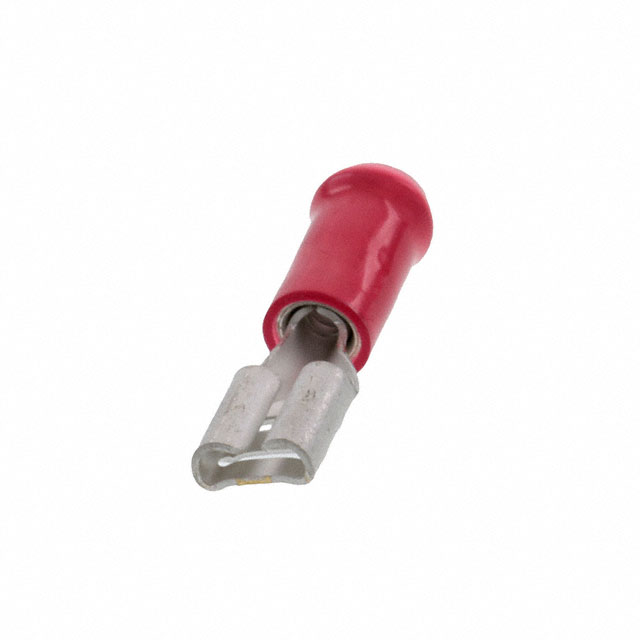

8-1377174-7

TE Connectivity Raychem Cable Protection

SMP 9-0160483-1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8-1377174-7

TE Connectivity Raychem Cable Protection

SMP 9-0160483-1

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8-1377174-7

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [Max] [diameter]	0.14 in
Insulation Diameter [Max] [diameter]	3.56 mm
Insulation Diameter [Min] [diameter]	0.105 in
Insulation Diameter [Min] [diameter]	2.67 mm
Length - Overall [x]	0.822 in
Length - Overall [x]	20.88 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	6.35 mm
Tab Length	0.25 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

1377174 Series

Part	Tab Thickness	Tab Thickness	Terminal Type	Contact Material	Color	Insulation	Mounting Type	Tab Width	Tab Width	Contact Finish	Length - Overall [x]	Length - Overall [x]	Termination	Gender	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Length	Tab Length	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation	Features	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Stud/Tab Size	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Termination	Length - Termination
TE Connectivity Raychem Cable Protection 9-1377174-6	0.02 "	0.51 mm	Standard	Phosphor Bronze	Blue	Non-Mating End Insulated	Free Hanging (In-Line)	2.79 mm	0.11 "	Tin	0.78 in	19.81 mm	Crimp	Female	16 AWG	14 AWG	4.29 mm	0.169 in	0.248 in	6.3 mm
TE Connectivity Raychem Cable Protection 7-1377174-7	0.032 in	0.81 mm	Standard	Brass	Yellow	Non-Mating End Insulated	Free Hanging (In-Line)	2.79 mm	0.11 "	Tin			Crimp	Female	26 AWG	22 AWG			0.248 in	6.3 mm	2.11 mm	0.083 in	1.1 mm	0.043 in
TE Connectivity Raychem Cable Protection 8-1377174-7	0.032 in	0.81 mm	Standard	Brass	Red	Non-Mating End Insulated	Free Hanging (In-Line)	4.75 mm	0.187 in	Tin	0.822 in	20.88 mm	Crimp	Female	22 AWG	16 AWG			0.25 in	6.35 mm		0.14 in	2.67 mm	0.105 in	3.56 mm
TE Connectivity Raychem Cable Protection 9-1377174-5	0.02 "	0.51 mm	Standard	Brass	Blue	Non-Mating End Insulated	Free Hanging (In-Line)	2.79 mm	0.11 "	Tin	0.78 in	19.81 mm	Crimp	Female	16 AWG	14 AWG	4.29 mm	0.169 in	0.25 in	6.35 mm
TE Connectivity Raychem Cable Protection 6-1377174-7						Insulated																				0.25 in	0.25 in	Quick Connect Male (2)	6.35 mm	6.35 mm	0.25 in	Quick Connect Male (2)	0.25 in
TE Connectivity Raychem Cable Protection 9-1377174-0	0.032 in	0.81 mm	Standard	Phosphor Bronze	Blue	Non-Mating End Insulated	Free Hanging (In-Line)	5 mm	0.197 in	Tin			Crimp	Female
TE Connectivity Raychem Cable Protection 8-1377174-0	0.016 "	0.41 mm	Standard	Brass	Red	Non-Mating End Insulated	Free Hanging (In-Line)	2.79 mm	0.11 "	Tin	0.78 in	19.81 mm	Crimp	Female	22 AWG	16 AWG	3.56 mm	0.14 in	0.248 in	6.3 mm
TE Connectivity Raychem Cable Protection 8-1377174-2	0.02 "	0.51 mm	Standard	Phosphor Bronze	Red	Non-Mating End Insulated	Free Hanging (In-Line)	2.79 mm	0.11 "	Tin	0.78 in	19.81 mm	Crimp	Female	22 AWG	16 AWG	3.56 mm	0.14 in	0.248 in	6.3 mm
TE Connectivity Raychem Cable Protection 8-1377174-5	0.02 "	0.51 mm	Standard	Brass	Red	Non-Mating End Insulated	Free Hanging (In-Line)	4.75 mm	0.187 in	Tin	0.822 in	20.88 mm	Crimp	Female	22 AWG	16 AWG			0.25 in	6.35 mm		0.14 in	2.67 mm	0.105 in	3.56 mm
TE Connectivity Raychem Cable Protection 1377174-6			Standard	Copper	Yellow	Insulated	Free Hanging (In-Line)			Tin	1.299 in	33 mm	Crimp		12 AWG	10 AWG																		13.49 mm	0.531 "	0.25 in	6.35 mm	Nylon Polyamide (PA)	Serrated Termination	0.437 "	11.1 mm	M6 Stud	0.15 "	6.4 mm	3.81 mm	0.252 "	15.39 mm	0.606 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.82
		10	$ 0.78
		25	$ 0.74
		50	$ 0.73
		100	$ 0.64
		250	$ 0.62
		500	$ 0.58
		1000	$ 0.50
		2500	$ 0.47

Description

General part information

1377174 Series

0.187" (4.75mm) Quick Connect Female 16-22 AWG Crimp Connector Non-Mating End Insulated
