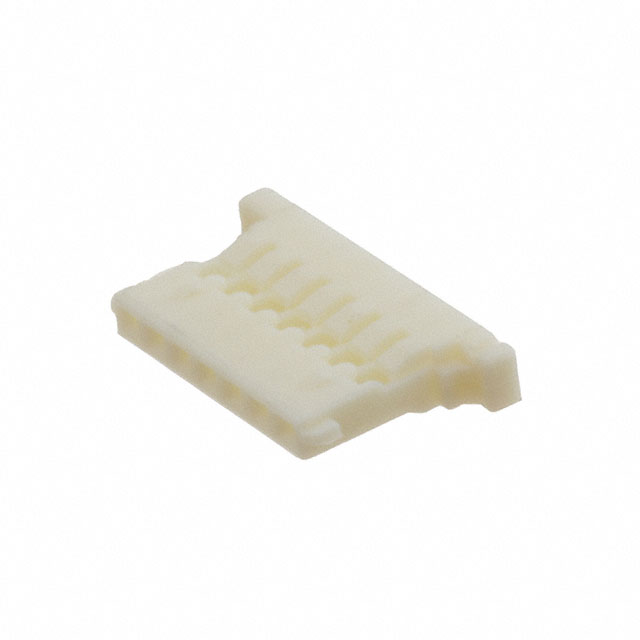

125CH-G-07
ActiveAdam Tech
CONN RCPT HSG 7POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 125CH-G-07 | 125CH-G Series |
|---|---|---|
| Color | White | White |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Friction Lock | Friction Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 7 | 2 - 9 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Pitch [x] | 0.049 in | 0.049 in |
| Pitch [x] | 1.25 mm | 1.25 mm |
125CH-G Series
HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS
| Part | Connector Type | Color | Pitch [x] | Pitch [x] | Number of Positions | Contact Termination | Number of Rows | Note | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Fastening Type | Mounting Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech 125CH-G-06 | Receptacle | White | 0.049 in | 1.25 mm | 6 | Crimp | 1 | Contacts Not Included | -25 °C | 85 °C | Female Socket | Friction Lock | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) |
Adam Tech 125CH-G-07 | Receptacle | White | 0.049 in | 1.25 mm | 7 | Crimp | 1 | Contacts Not Included | -25 °C | 85 °C | Female Socket | Friction Lock | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) |
Adam Tech 125CH-G-02 | Receptacle | White | 0.049 in | 1.25 mm | 2 | Crimp | 1 | Contacts Not Included | -25 °C | 85 °C | Female Socket | Friction Lock | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) |
Adam Tech 125CH-G-05 | Receptacle | White | 0.049 in | 1.25 mm | Crimp | 1 | Contacts Not Included | -25 °C | 85 °C | Female Socket | Friction Lock | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | |
Adam Tech 125CH-G-09 | Receptacle | White | 0.049 in | 1.25 mm | 9 | Crimp | 1 | Contacts Not Included | -25 °C | 85 °C | Female Socket | Friction Lock | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) |
Adam Tech 125CH-G-08 | Receptacle | White | 0.049 in | 1.25 mm | 8 | Crimp | 1 | Contacts Not Included | -25 °C | 85 °C | Female Socket | Friction Lock | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.79 | |
| 10 | $ 0.60 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.33 | |||
Description
General part information
125CH-G Series
7 Rectangular Connectors - Housings Receptacle White 0.049" (1.25mm)
