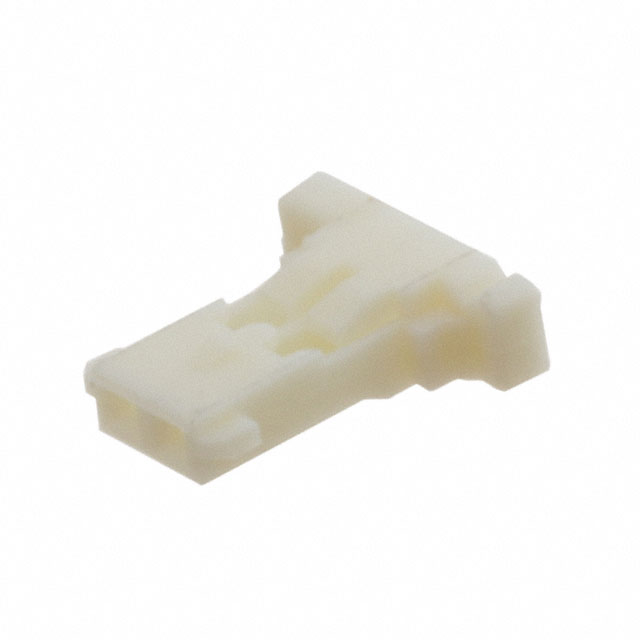

125CH-G-02

Active

Adam Tech

CONN RCPT HSG 2POS 1.25MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 2POS 1.25MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle White 0.049" (1.25mm)

Technical documentation and resources

Specification	125CH-G-02	125CH-G Series

Color	White	White
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Friction Lock	Friction Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 9
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.049 in	0.049 in
Pitch [x]	1.25 mm	1.25 mm

Part	Connector Type	Color	Pitch [x]	Pitch [x]	Number of Positions	Contact Termination	Number of Rows	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Mounting Type	Insulation Material
Adam Tech 125CH-G-06	Receptacle	White	0.049 in	1.25 mm	6	Crimp	1	Contacts Not Included	-25 °C	85 °C	Female Socket	Friction Lock	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)
Adam Tech 125CH-G-07	Receptacle	White	0.049 in	1.25 mm	7	Crimp	1	Contacts Not Included	-25 °C	85 °C	Female Socket	Friction Lock	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)
Adam Tech 125CH-G-02	Receptacle	White	0.049 in	1.25 mm	2	Crimp	1	Contacts Not Included	-25 °C	85 °C	Female Socket	Friction Lock	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)
Adam Tech 125CH-G-05	Receptacle	White	0.049 in	1.25 mm		Crimp	1	Contacts Not Included	-25 °C	85 °C	Female Socket	Friction Lock	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)
Adam Tech 125CH-G-09	Receptacle	White	0.049 in	1.25 mm	9	Crimp	1	Contacts Not Included	-25 °C	85 °C	Female Socket	Friction Lock	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)
Adam Tech 125CH-G-08	Receptacle	White	0.049 in	1.25 mm	8	Crimp	1	Contacts Not Included	-25 °C	85 °C	Female Socket	Friction Lock	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)
