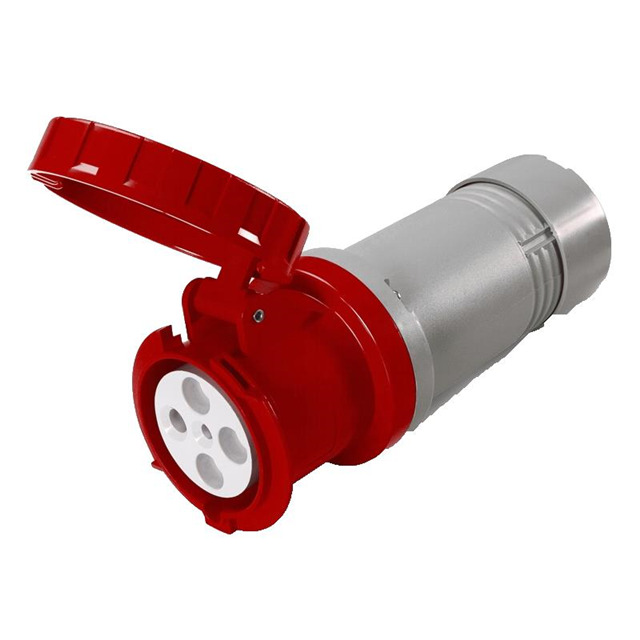

460C7W

Active

Scame

AC RCPT PIN & SLEEVE

Search across all available documentation for this part.

Active

Scame

AC RCPT PIN & SLEEVE

Technical Specifications

Parameters and characteristics for this part

Specification	460C7W

Approval Agency	cULus, UL
Connector Style	Pin and Sleeve (3P4W)
Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	60 A
Features	Push-Twist Lock, Cover, Chemical Resistant, Cord Grip, Strain Relief, Impact Resistant
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Termination	Screw
Voltage Rating	480 VAC
Voltage Rating	3 Phase

AC RCPT PIN & SLEEVE

Part	Current Rating (Amps)	Features	Mounting Type	Approval Agency	Connector Style	Ingress Protection	Voltage Rating	Voltage Rating	Number of Positions	Connector Type	Termination
Scame 460C7W	60 A	Chemical Resistant, Cord Grip, Cover, Impact Resistant, Push-Twist Lock, Strain Relief	Free Hanging (In-Line)	cULus, UL	Pin and Sleeve (3P4W)	IP67 - Dust Tight, Waterproof	480 VAC	3 Phase	4	Receptacle, Female Sockets	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Receptacle, Female Sockets Pin and Sleeve (3P4W) Free Hanging (In-Line)

Technical documentation and resources

No documents available
