SRB1-2D-DC-1-NN

Active

Switch Components

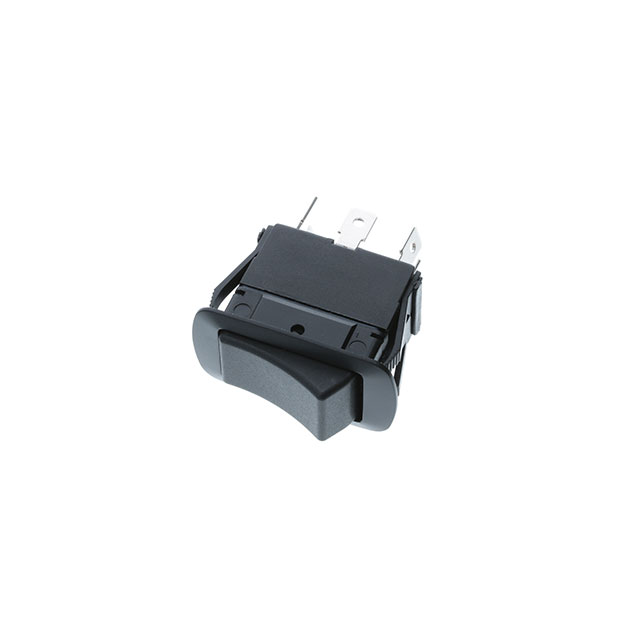

ROCKER; DPDT; POS: 2; ON-ON; 10A/28VDC; BLACK; IP56; NONE; SRB

Search across all available documentation for this part.

Active

Switch Components

ROCKER; DPDT; POS: 2; ON-ON; 10A/28VDC; BLACK; IP56; NONE; SRB

Technical Specifications

Parameters and characteristics for this part

Specification	SRB1-2D-DC-1-NN

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	CSA, cURus, ENEC
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A, 20 A
Electrical Life	6000 Cycles
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

Part	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Type	Termination Style	Color - Actuator/Cap	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Circuit	Actuator Marking	Approval Agency	Ingress Protection	Voltage Rating - AC	Mechanical Life	Electrical Life	Voltage Rating - DC	Illumination Type, Color	Illumination Voltage (Nominal)
Switch Components SRB1-2D-AC-1-NN	16 A	21.2 mm	36.6 mm	Concave (Curved)	Quick Connect - 0.250" (6.3mm)	Black	Panel Mount Snap-In	85 °C	-20 C	On-On	DPDT	No Marking	CSA cURus ENEC	IP56 - Dust Protected Water Resistant	125 V
Switch Components SRB1-2D-DC-1-NN	20 A 21 A	21.2 mm	36.6 mm	Concave (Curved)	Quick Connect - 0.250" (6.3mm)	Black	Panel Mount Snap-In	85 °C	-20 C	On-On	DPDT	No Marking	CSA cURus ENEC	IP56 - Dust Protected Water Resistant	125 V	10000 Steps	6000 Cycles	14 V
Switch Components SRB3-1F-DC-1-RGL	21 A	21.2 mm	36.6 mm	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)	Black	Panel Mount Snap-In	85 °C	-20 C	On-Off-On	SPDT	No Marking	cURus ENEC	IP56 - Dust Protected Water Resistant		10000 Steps	6000 Cycles	14 V	Green/Red LED	14 VDC
