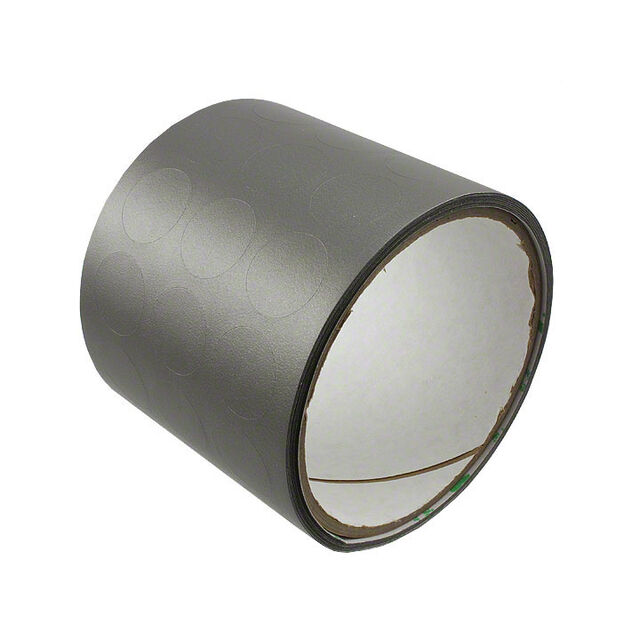

Specification	3M AB5020HF 0.688"CIRCLE-100

Adhesive	Single Sided, Non-Conductive
Material	Polymer Resin, Metal Flakes
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Shape	Circular
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	71 °F
Thickness - Overall	0.008 in
Type	Absorbing Sheet
Width	0.688 in

AB5020HF Series

Part	Storage/Refrigeration Temperature	Shelf Life	Shelf Life Start	Adhesive	Width	Shape	Length	Thickness - Overall	Type	Material	Operating Temperature (Max)	Operating Temperature (Min)
3M (TC) 3M AB5020HF 2.95" X 9.25"-5	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	2.95 in	Rectangular	9.25 "	0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 2.95" X 6"-5	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	2.95 in	Rectangular	0.5 ft	0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 2.95" X 3"-10	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	2.95 in	Rectangular	3 "	0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 3.94" X 15M	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	3.94 in		49.21 ft	0.008 in	Absorbing Tape	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 3.94" X 4YD	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	3.94 in	Rectangular	12 ft	0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 2"CIRCLE-25	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	2 in	Circular		0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 3.94" X 5"-5	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	3.94 in	Rectangular	12 ft	0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 2.95" X 8.625"-5	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	2.95 in	Rectangular	8.625 in	0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 3.94" X 9.25"-5	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	3.94 in	Rectangular	9.25 "	0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C
3M (TC) 3M AB5020HF 3"CIRCLE-10	71 °F	12 Months	Date of Shipment	Non-Conductive Single Sided	3 in	Circular		0.008 in	Absorbing Sheet	Metal Flakes Polymer Resin	85 °C	-25 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3M AB5020HF 0.688"CIRCLE-100 | Datasheet
