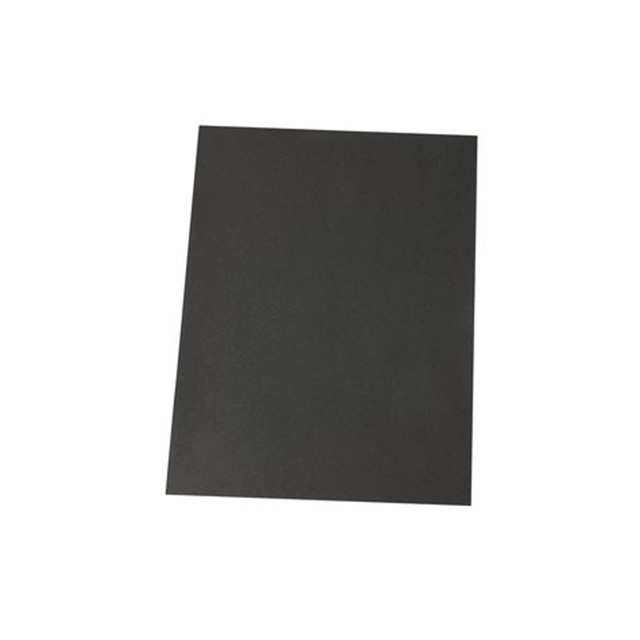

3M AB5020HF 3.94" X 4YD

Active

3M (TC)

RF ABSORB SHEET 12'X3.94" ROLL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M AB5020HF 3.94" X 4YD

Active

3M (TC)

RF ABSORB SHEET 12'X3.94" ROLL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M AB5020HF 3.94" X 4YD

Adhesive	Single Sided, Non-Conductive
Length	12 ft
Length	3.65 m
Material	Metal Flakes, Polymer Resin
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	71 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall	0.2 mm
Thickness - Overall	0.008 "
Type	Absorbing Sheet
Width [y]	3.94 in
Width [y]	100.08 mm

AB5020HF Series

Part	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Width [x]	Width [x]	Type	Material	Shape	Thickness - Overall	Thickness - Overall	Length	Length	Shelf Life Start	Adhesive	Width [y]	Width [y]
3M (TC) 3M AB5020HF 2.95" X 6"-5	71 °F	21 °C	12 Months	-25 °C	85 °C	74.93 mm	2.95 in	Absorbing Sheet	Metal Flakes Polymer Resin	Rectangular	0.2 mm	0.008 "	152.4 mm	6 in	Date of Shipment	Non-Conductive Single Sided
3M (TC) 3M AB5020HF 2.95" X 3"-10	71 °F	21 °C	12 Months	-25 °C	85 °C	74.93 mm	2.95 in	Absorbing Sheet	Metal Flakes Polymer Resin	Rectangular	0.2 mm	0.008 "	76.2 mm	3 in	Date of Shipment	Non-Conductive Single Sided
3M (TC) 3M AB5020HF 3.94" X 15M	71 °F	21 °C	12 Months	-25 °C	85 °C			Absorbing Tape	Metal Flakes Polymer Resin		0.2 mm	0.008 "	15 m	49.21 '	Date of Shipment	Non-Conductive Single Sided	3.94 in	100.08 mm
3M (TC) 3M AB5020HF 3.94" X 4YD	71 °F	21 °C	12 Months	-25 °C	85 °C			Absorbing Sheet	Metal Flakes Polymer Resin	Rectangular	0.2 mm	0.008 "	3.65 m	12 ft	Date of Shipment	Non-Conductive Single Sided	3.94 in	100.08 mm
3M (TC) 3M AB5020HF 2"CIRCLE-25	71 °F	21 °C	12 Months	-25 °C	85 °C	50.8 mm	2 in	Absorbing Sheet	Metal Flakes Polymer Resin	Circular	0.2 mm	0.008 "			Date of Shipment	Non-Conductive Single Sided
3M (TC) 3M AB5020HF 2.95" X 8.625"-5	71 °F	21 °C	12 Months	-25 °C	85 °C	74.93 mm	2.95 in	Absorbing Sheet	Metal Flakes Polymer Resin	Rectangular	0.2 mm	0.008 "			Date of Shipment	Non-Conductive Single Sided
3M (TC) 3M AB5020HF 3.94" X 9.25"-5	71 °F	21 °C	12 Months	-25 °C	85 °C			Absorbing Sheet	Metal Flakes Polymer Resin	Rectangular	0.2 mm	0.008 "	234.95 mm	9.25 inches	Date of Shipment	Non-Conductive Single Sided	3.94 in	100.08 mm
3M (TC) 3M AB5020HF 0.98" X 4"-25	71 °F	21 °C	12 Months	-25 °C	85 °C			Absorbing Sheet	Metal Flakes Polymer Resin	Rectangular	0.2 mm	0.008 "	101.6 mm	4 in	Date of Shipment	Non-Conductive Single Sided
3M (TC) 3M AB5020HF 0.53" X 3"-50	71 °F	21 °C	12 Months	-25 °C	85 °C	13.46 mm	0.53 "	Absorbing Sheet	Metal Flakes Polymer Resin	Rectangular	0.2 mm	0.008 "	76.2 mm	3 in	Date of Shipment	Non-Conductive Single Sided
3M (TC) 3M AB5020HF 0.938"CIRCLE-100	71 °F	21 °C	12 Months	-25 °C	85 °C	23.83 mm	0.983 in	Absorbing Sheet	Metal Flakes Polymer Resin	Circular	0.2 mm	0.008 "			Date of Shipment	Non-Conductive Single Sided

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AB5020HF Series

RF EMI Absorbing Sheet AB5020HF Polymer Resin, Metal Flakes Non-Conductive, Single Sided 3.940" (100.08mm) X 12.000' (3.65m) X 0.008" (0.20mm)

Documents

Technical documentation and resources
