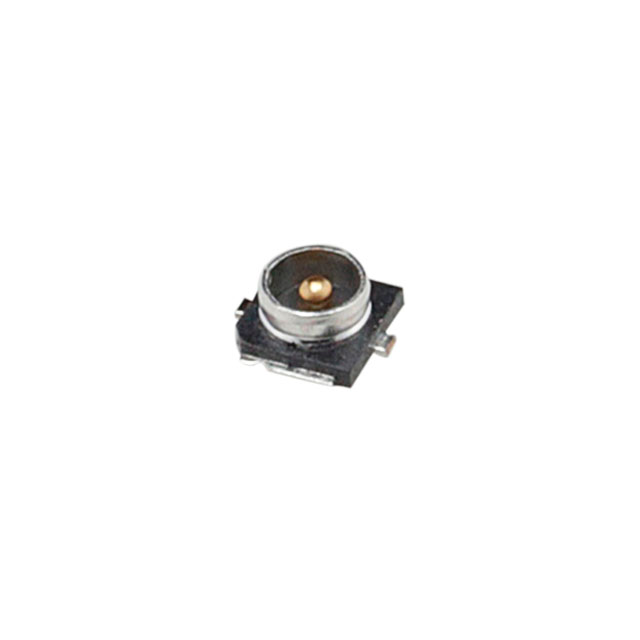

A-2JA
ActiveAmphenol RF
RF COAX CONN, AMMC JACK, 50 OHM, PCB ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
A-2JA
ActiveAmphenol RF
RF COAX CONN, AMMC JACK, 50 OHM, PCB ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A-2JA |
|---|---|
| Body Finish | Silver |
| Body Material | Phosphor Bronze |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | AMMC |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 3 GHz |
| Housing Color | Black |
| Impedance | 50 Ohms |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.29 | |
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 1.29 | ||
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.71 | |||
| Tape & Reel (TR) | 3000 | $ 0.65 | ||
| 6000 | $ 0.62 | |||
| 9000 | $ 0.59 | |||
| 15000 | $ 0.58 | |||
| Newark | Each | 1 | $ 1.35 | |
| 10 | $ 1.31 | |||
| 25 | $ 1.22 | |||
| 50 | $ 1.17 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.98 | |||
| 1000 | $ 0.87 | |||
Description
General part information
A-2J Series
AMMC Connector Jack, Male Pin 50 Ohms Surface Mount Solder
