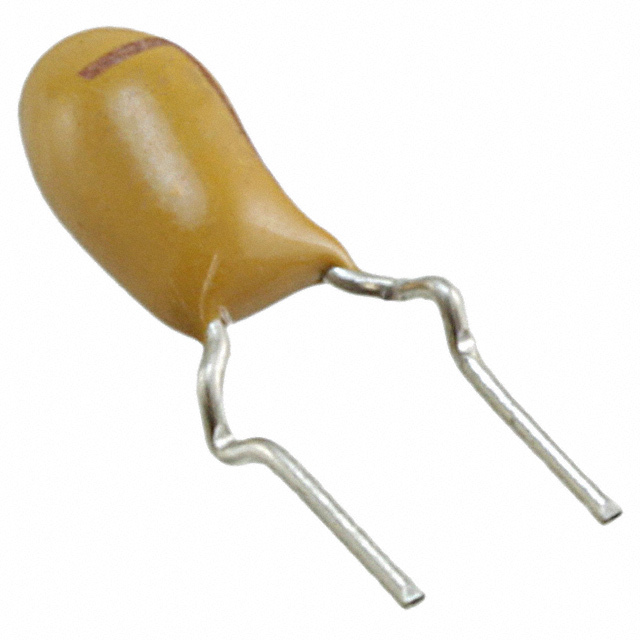

T352E475K035AT

Active

KEMET

TANTALUM CAPACITOR, POLAR, 4.7 ΜF, 35 V, ± 10%, PC PIN, 5 MM, 3 OHM

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLAR, 4.7 ΜF, 35 V, ± 10%, PC PIN, 5 MM, 3 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	T352E475K035AT

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	3 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.461 in
Height - Seated (Max) [Max] [z]	11.7 mm
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	E
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.217 "
Size / Dimension [diameter]	5.5 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

Part	Capacitance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Type	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	Mounting Type	Manufacturer Size Code
KEMET T352E106M025AT	10 µF	25 VDC	0.461 in	11.7 mm	5.08 mm	0.2 in	Conformal Coated	2.5 Ohm	0.217 "	5.5 mm	General Purpose	-55 °C	125 °C	20 %	Radial	Through Hole	E
KEMET T352E106K025AT	10 µF	25 VDC	0.46 in	11.68 mm	5.08 mm	0.2 in	Conformal Coated	2.5 Ohm	0.217 "	5.5 mm	General Purpose	-55 °C	125 °C	10 %	Radial	Through Hole	E
KEMET T352E475K035AT	4.7 µF	35 V	0.461 in	11.7 mm	5.08 mm	0.2 in	Conformal Coated	3 Ohm	0.217 "	5.5 mm	General Purpose	-55 °C	125 °C	10 %	Radial	Through Hole	E

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF Conformal Coated Tantalum Capacitors 35 V Radial 3Ohm @ 100kHz
