DS04-254-2-04BK-SMT-TR
ActiveCUI Devices

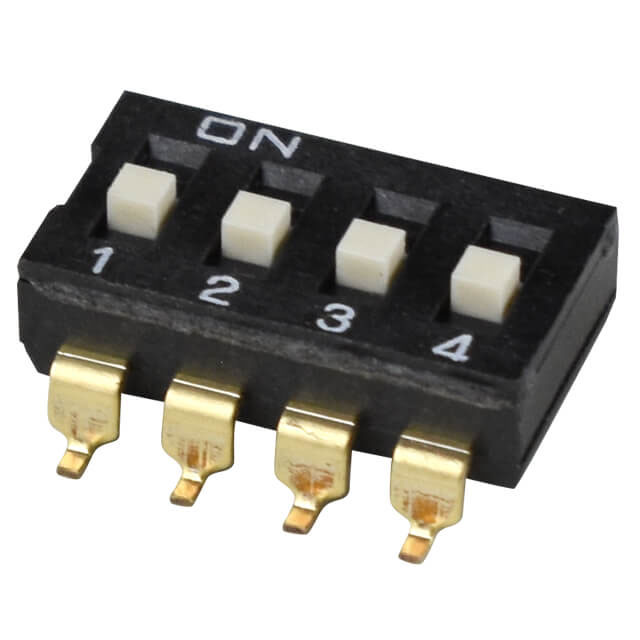

SWITCH DIP OFF ON SPST 4 FLAT SLIDE 0.025A 24VDC GULL WING 2.54MM SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS04-254-2-04BK-SMT-TR
ActiveCUI Devices
SWITCH DIP OFF ON SPST 4 FLAT SLIDE 0.025A 24VDC GULL WING 2.54MM SMD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS04-254-2-04BK-SMT-TR |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Polybutylene Terephthalate (PBT) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Height Above Board [z] | 0.167 in |
| Height Above Board [z] | 4.25 mm |
| Length [x] | 11.16 mm |
| Length [x] | 0.439 in |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
ds04-254-smt Series
| Part | Washable | Actuator Type | Electrical Life | Number of Positions | Body Material | Pitch [x] | Pitch | Pitch [x] | Length [x] | Length [x] | Mounting Type | Voltage Rating | Circuit | Actuator Level | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Height Above Board [z] | Height Above Board [z] | Contact Material | Current Rating (Amps) | Termination Style | Length | Height Above Board | Height Above Board | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Slide (Standard) | 2000 Steps | 4 | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | 11.16 mm | 0.439 in | Surface Mount | 24 VDC | SPST | Flush Recessed | 85 °C | -40 °C | Gold | 0.167 in | 4.25 mm | Copper Alloy | 25 mA | Gull Wing | |||||
CUI Devices | Slide (Standard) | 2000 Steps | 7 | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | 0.739 in | Surface Mount | 24 VDC | SPST | Flush Recessed | 85 °C | -40 °C | Gold | 0.167 in | 4.25 mm | Copper Alloy | 25 mA | Gull Wing | 18.78 mm | |||||
CUI Devices | Slide (Standard) | 2000 Steps | 1 | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | 3.54 mm | 0.139 in | Through Hole | 24 VDC | SPST | Raised | 85 °C | -40 °C | Gold | Copper Alloy | 25 mA | PC Pin | 4.21 mm | 0.166 " | |||||
CUI Devices | Slide (Standard) | 2000 Steps | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | Through Hole | 24 VDC | SPST | Raised | 85 °C | -40 °C | Gold | Copper Alloy | 25 mA | PC Pin | 8.62 mm | 4.21 mm | 0.166 " | 0.339 in | ||||||
CUI Devices | Slide (Standard) | 2000 Steps | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | Surface Mount | 24 VDC | SPST | Flush Recessed | 85 °C | -40 °C | Gold | 0.167 in | 4.25 mm | Copper Alloy | 25 mA | Gull Wing | ||||||||
CUI Devices | Slide (Standard) | 2000 Steps | 1 | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | 3.54 mm | 0.139 in | Through Hole | 24 VDC | SPST | Raised | 85 °C | -40 °C | Gold | Copper Alloy | 25 mA | PC Pin | 4.21 mm | 0.166 " | |||||
CUI Devices | Slide (Standard) | 2000 Steps | 1 | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | 3.54 mm | 0.139 in | Through Hole | 24 VDC | SPST | Flush Recessed | 85 °C | -40 °C | Gold | Copper Alloy | 25 mA | PC Pin | 3.66 mm | 0.144 in | |||||
CUI Devices | Slide (Standard) | 2000 Steps | 6 | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | Surface Mount | 24 VDC | SPST | Flush Recessed | 85 °C | -40 °C | Gold | 0.167 in | 4.25 mm | Copper Alloy | 25 mA | Gull Wing | 16.24 mm | 0.639 in | |||||
CUI Devices | Slide (Standard) | 2000 Steps | 12 | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | 31.48 mm | 1.239 in | Through Hole | 24 VDC | SPST | Flush Recessed | 85 °C | -40 °C | Gold | Copper Alloy | 25 mA | PC Pin | 3.66 mm | 0.144 in | |||||
CUI Devices | Slide (Standard) | 2000 Steps | 7 | Polybutylene Terephthalate (PBT) | 0.1 in | Full | 2.54 mm | 0.739 in | Through Hole | 24 VDC | SPST | Flush Recessed | 85 °C | -40 °C | Gold | Copper Alloy | 25 mA | PC Pin | 18.78 mm | 3.66 mm | 0.144 in |
