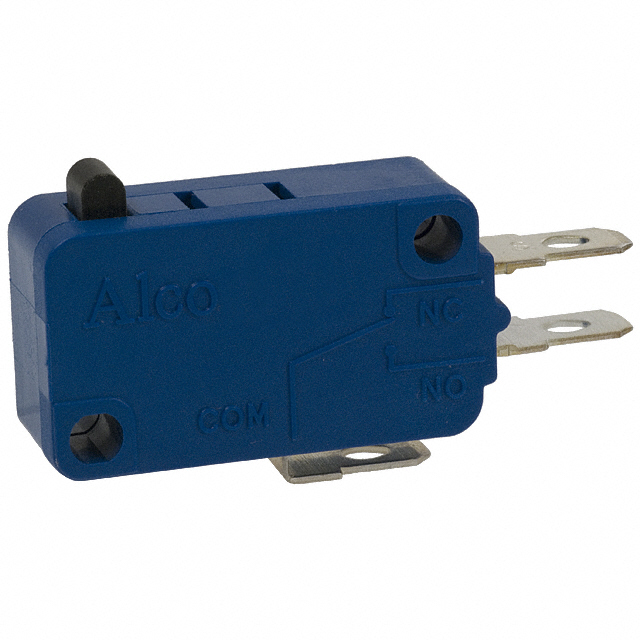

1478605-1
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH SNAP ACTION SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
1478605-1
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH SNAP ACTION SPDT 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1478605-1 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 16 A |
| Differential Travel | 0.016 " |
| Differential Travel | 0.4 mm |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 300 gf |
| Operating Position | 14.8 mm |
| Operating Position | 0.583 in |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Overtravel | 0.76 mm |
| Overtravel | 0.03 in |
| Pretravel | 0.063 in |
| Pretravel | 1.6 mm |
| Release Force | 70 gf |
| Switch Function | On-Mom |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1478605 Series
Switch SPDT Chassis Mount
