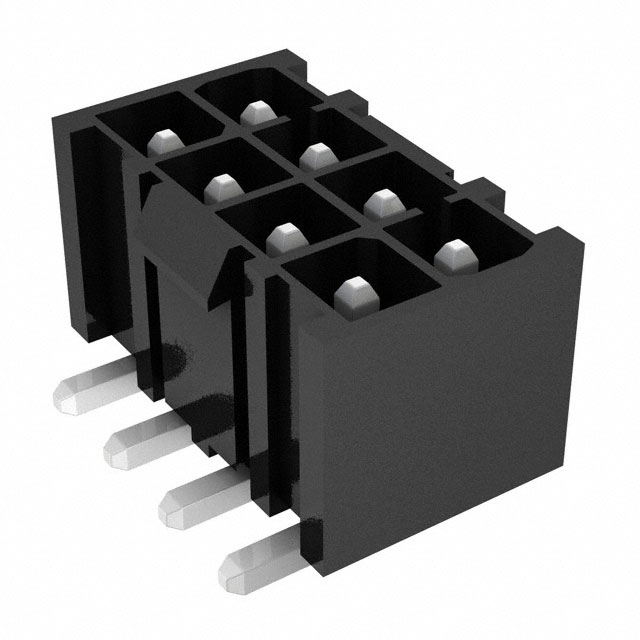

Specification	IPBT-104-H2-T-D-K

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.26 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.38 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating (AC)	400 VAC
Voltage Rating (DC)	565 VDC

IPBT-104 Series

Part	Contact Length - Mating	Pitch - Mating	Fastening Type	Connector Type	Contact Finish - Post	Mounting Type	Number of Positions	Row Spacing - Mating	Contact Material	Insulation Color	Contact Shape	Insulation Height	Contact Type	Number of Rows	Termination	Features	Number of Positions Loaded	Insulation Material	Shrouding	Material Flammability Rating	Style	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Voltage Rating (AC)	Voltage Rating (DC)	Contact Length - Post	Overall Contact Length
Samtec Inc. IPBT-104-H2-T-D-GP	0.26 in	0.165 in	Locking Ramp	Header	Tin	Surface Mount	8	0.165 in	Copper Alloy	Black	Square	0.38 in	Male Pin	2	Solder	Mating Flange	All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC
Samtec Inc. IPBT-104-H1-TM-D-GP	0.26 in	0.165 in	Locking Ramp	Header	Tin	Through Hole	8	0.165 in	Copper Alloy	Black	Square	0.38 in	Male Pin	2	Solder	Mating Flange	All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC	0.13 in	0.51 in
Samtec Inc. IPBT-104-H1-T-D-RA-GP	0.26 in	0.165 in	Locking Ramp	Header	Tin	Right Angle Through Hole	8	0.165 in	Copper Alloy	Black	Square	0.424 in	Male Pin	2	Solder	Mating Flange	All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC	0.147 in
Samtec Inc. IPBT-104-H1-T-S-GP	0.26 in	0.165 in	Locking Ramp	Header	Tin	Through Hole	4		Copper Alloy	Black	Square	0.38 in	Male Pin	1	Solder	Mating Flange	All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC	0.13 in	0.51 in
Samtec Inc. IPBT-104-H1-T-S-K	0.26 in	0.165 in	Locking Ramp	Header	Tin	Through Hole	4		Copper Alloy	Black	Square	0.38 in	Male Pin	1	Solder		All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC	0.13 in	0.51 in
Samtec Inc. IPBT-104-H5-T-D-K	0.26 in	0.165 in	Locking Ramp	Header	Tin	Through Hole	8	0.165 in	Copper Alloy	Black	Square	0.592 in	Male Pin	2	Solder		All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC	0.13 in	0.697 in
Samtec Inc. IPBT-104-H6-T-D-GP	0.26 in	0.165 in	Locking Ramp	Header	Tin	Through Hole	8	0.165 in	Copper Alloy	Black	Square	0.789 in	Male Pin	2	Solder	Mating Flange	All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC	0.13 in	0.894 in
Samtec Inc. IPBT-104-H1-TM-D-K	0.26 in	0.165 in	Locking Ramp	Header	Tin	Through Hole	8	0.165 in	Copper Alloy	Black	Square	0.38 in	Male Pin	2	Solder		All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC	0.13 in	0.51 in
Samtec Inc. IPBT-104-H4-T-D-K	0.26 in	0.165 in	Locking Ramp	Header	Tin	Through Hole	8	0.165 in	Copper Alloy	Black	Square	0.553 in	Male Pin	2	Solder		All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC	0.13 in	0.658 in
Samtec Inc. IPBT-104-H2-T-D-K	0.26 in	0.165 in	Locking Ramp	Header	Tin	Surface Mount	8	0.165 in	Copper Alloy	Black	Square	0.38 in	Male Pin	2	Solder		All	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	Board Board or Cable	-55 °C	105 °C	Tin	400 VAC	565 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

IPBT-104-H2-T-D-K | Datasheet

IPBS Series Other Related Documents 03

IPBT Datasheet

.165" Power Mate® Isolated Power Terminal Header
