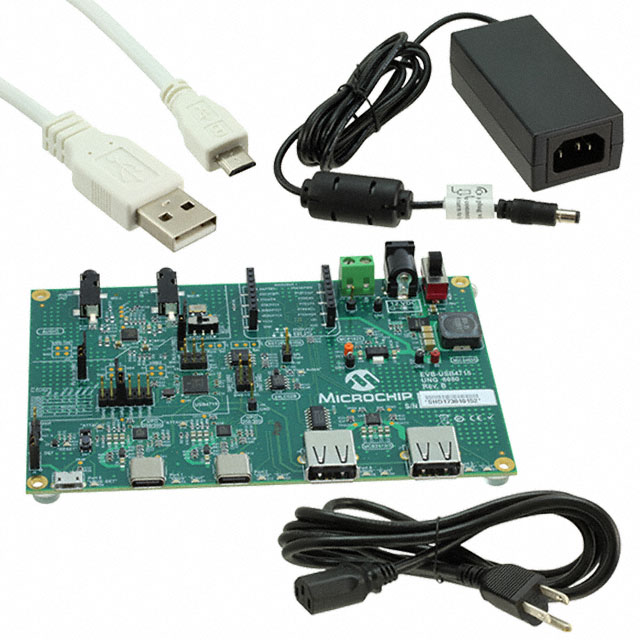

EVB-USB4715
ActiveMicrochip Technology
USB4715 EVALUATION BOARD UNG TOOLS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
EVB-USB4715
ActiveMicrochip Technology
USB4715 EVALUATION BOARD UNG TOOLS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EVB-USB4715 | USB4715 Series |
|---|---|---|
| - | - | |
| Function | USB 2.0 Hub | Hub Controller, USB 2.0 Hub |
| Interface | - | USB |
| Operating Temperature | - | 70 - 85 °C |
| Operating Temperature | - | -40 - 0 °C |
| Package / Case | - | 48-VFQFN Exposed Pad |
| Protocol | - | USB |
| Standards | - | USB 2.0 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-SQFN (7x7) |
| Type | Interface | Interface |
| Utilized IC / Part | USB4715 | USB4715 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
USB4715 Series
IC USB HUB CONTROLLER 48VQFN
| Part | Supplier Device Package | Package / Case | Protocol | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Function | Standards | Type | Utilized IC / Part | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology USB4715T-I/Y9X | 48-SQFN (7x7) | 48-VFQFN Exposed Pad | USB | 3.6 V | 3 V | 85 °C | -40 °C | USB | Hub Controller | USB 2.0 | |||
Microchip Technology EVB-USB4715 | |||||||||||||
Microchip Technology EVB-USB4715 | USB 2.0 Hub | Interface | USB4715 | Board(s) | |||||||||
Microchip Technology USB4715-I/Y9X | 48-SQFN (7x7) | 48-VFQFN Exposed Pad | USB | 3.6 V | 3 V | 85 °C | -40 °C | USB | Hub Controller | USB 2.0 | |||
Microchip Technology USB4715/Y9X | 48-SQFN (7x7) | 48-VFQFN Exposed Pad | USB | 3.6 V | 3 V | 70 °C | 0 °C | USB | Hub Controller | USB 2.0 |
Description
General part information
USB4715 Series
USB4715 USB 2.0 Hub Interface Evaluation Board
