CRLCBSK-2-14-01
ActiveEssentra Access Solutions

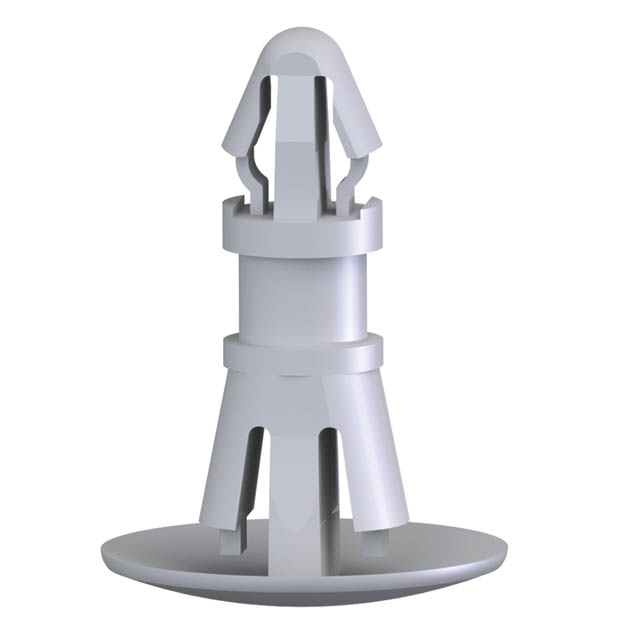

BRD SPT SNAP LOCK NYLON 14MM
Deep-Dive with AI
Search across all available documentation for this part.
CRLCBSK-2-14-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 14MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRLCBSK-2-14-01 |
|---|---|
| Between Board Height | 0.551 in |
| Between Board Height | 14 mm |
| Features | Locking, Reverse Mounting |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.902 in |
| Length - Overall [x] | 22.9 mm |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.213 in |
| Mounting Hole Diameter [diameter] | 5.4 mm |
| Mounting Panel Thickness [Max] | 1.6 mm |
| Mounting Panel Thickness [Max] | 0.063 in |
| Mounting Panel Thickness [Min] | 1 mm |
| Mounting Panel Thickness [Min] | 0.039 " |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.27 | |
| 5 | $ 0.23 | |||
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.14 | |||
Description
General part information
CRLCBSK Series
Board Support Snap Lock / Snap Lock Nylon 0.551" (14.00mm)
