PXD40-24WD12

Active

TDK-LAMBDA

CONVERTER: DC/DC; 40W; UIN: 9÷36VDC; UOUT: 12VDC; UOUT2: -12VDC; THT

Search across all available documentation for this part.

Active

TDK-LAMBDA

CONVERTER: DC/DC; 40W; UIN: 9÷36VDC; UOUT: 12VDC; UOUT2: -12VDC; THT

Technical Specifications

Parameters and characteristics for this part

Specification	PXD40-24WD12

Applications	ITE (Commercial)
Approval Agency	UKCA, CE
Control Features	Active High, Enable
Current - Output (Max)	1.666 A
Current - Output (Max)	1.666 A
Efficiency	91 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

Part	Features	Voltage - Output 1	Efficiency	Approval Agency	Applications	Voltage - Output 2	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Isolation	Control Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	Mounting Type	Package / Case	Current - Output (Max)	Current - Output (Max)	Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]
TDK-LAMBDA PXD40-24WD12	Adjustable Output Remote On/Off Remote Sense	12 V	91 %	CE UKCA	ITE (Commercial)	-12 V	40 W	36 V	1.6 kV	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	62368-1	Through Hole	6-DIP Module	1.666 A	1.666 A	Isolated Module	2	-40 °C	105 C	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

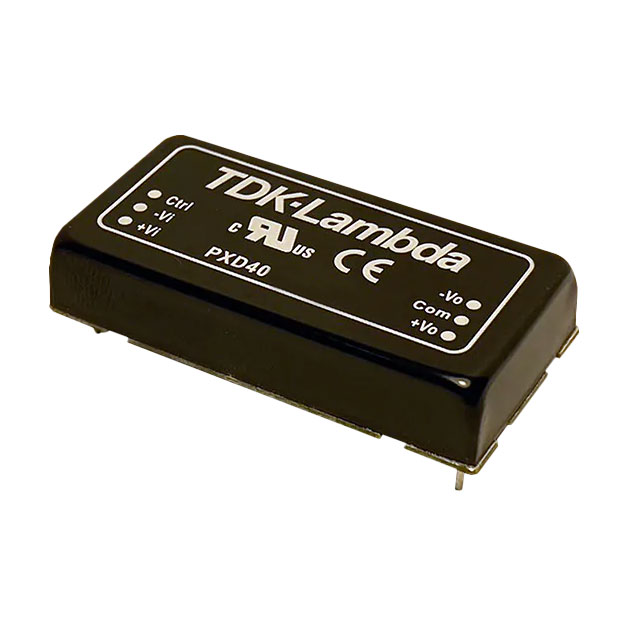

Isolated Module DC DC Converter 2 Output 12V -12V 1.666A, 1.666A 9V - 36V Input
