XVBL4B5

Active

Schneider Electric

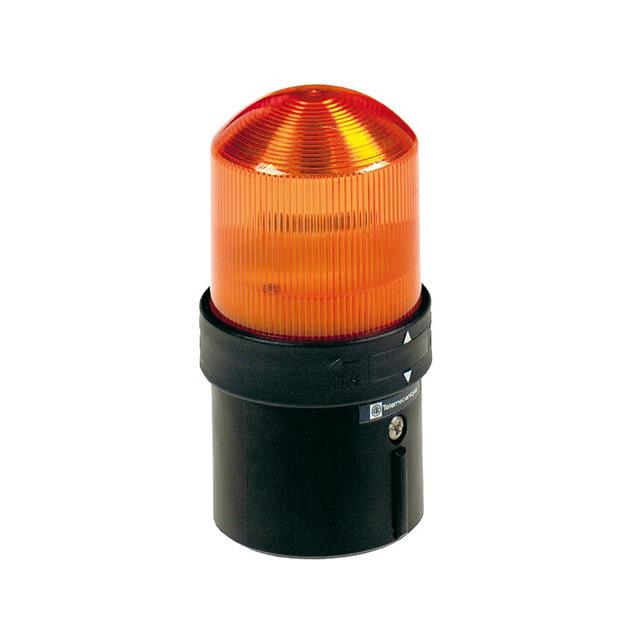

INDICATING BEACON 48VDC 10W +OPTIONS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Schneider Electric

INDICATING BEACON 48VDC 10W +OPTIONS ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Complete Unit Orange Incandescent Screw Terminal

Technical documentation and resources

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Light Color	Weight	Weight	Termination Style	Number of Stacks	Function - Lighting	Lamp Type
Schneider Electric XVBL4M8	-40 °C	70 °C	IP65, IP66	Complete Unit	48 VAC/DC	230 VAC	Yellow	0.62 lb	281.23 g	Screw Terminal	1	Flashing
Schneider Electric XVBL4B3	-40 °C	70 °C	IP65, IP66	Complete Unit	24 VAC	48 VAC/DC	Green			Screw Terminal	1	Flashing
Schneider Electric XVBL4M5	-40 °C	70 °C	IP65, IP66	Complete Unit	48 VAC/DC	230 VAC	Orange	0.62 lb	281.23 g	Screw Terminal	1	Flashing
Schneider Electric XVBL4B4	-40 °C	70 °C	IP65, IP66	Complete Unit	24 VAC	48 VAC/DC	Red			Screw Terminal	1	Flashing	Incandescent
Schneider Electric XVBL4B5	-40 °C	70 °C	IP65, IP66	Complete Unit	24 VAC	48 VAC/DC	Orange	0.62 lb	281.23 g	Screw Terminal	1	Flashing	Incandescent
Schneider Electric XVBL4B6	-40 °C	70 °C	IP65, IP66	Complete Unit	24 V	48 V				Screw Terminal	1	Flashing
Schneider Electric XVBL4M4	-40 °C	70 °C	IP65, IP66	Complete Unit	48 VAC/DC	230 VAC	Red	0.62 lb	281.23 g	Screw Terminal	1	Flashing
