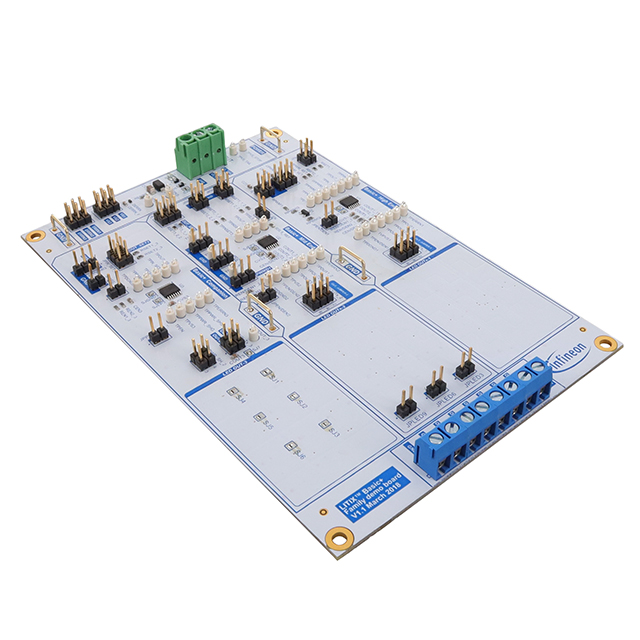

BASICPLUSDEMOBOARDTOBO1
ActiveInfineon Technologies
DEMO BOARD, LINEAR, 7V, LED DRIVER ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
BASICPLUSDEMOBOARDTOBO1
ActiveInfineon Technologies
DEMO BOARD, LINEAR, 7V, LED DRIVER ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BASICPLUSDEMOBOARDTOBO1 |
|---|---|
| Current - Output / Channel | 60 mA |
| Features | Dimmable |
| Outputs and Type | 3 Non-Isolated Outputs |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TLD1114-1EP, TLD2331-3EP, TLD2141-3EP |
| Voltage - Input [Max] | 16 V |
| Voltage - Input [Min] | 8 V |
| Voltage - Output [Max] | 7 V |
| Voltage - Output [Min] | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BASICPLUSDEMO Series
TLD1114-1EP, TLD2141-3EP, TLD2331-3EP - 3 Non-Isolated Outputs pval(5) LED Driver Evaluation Board
