5590H-05-50-5
Active3M (TC)

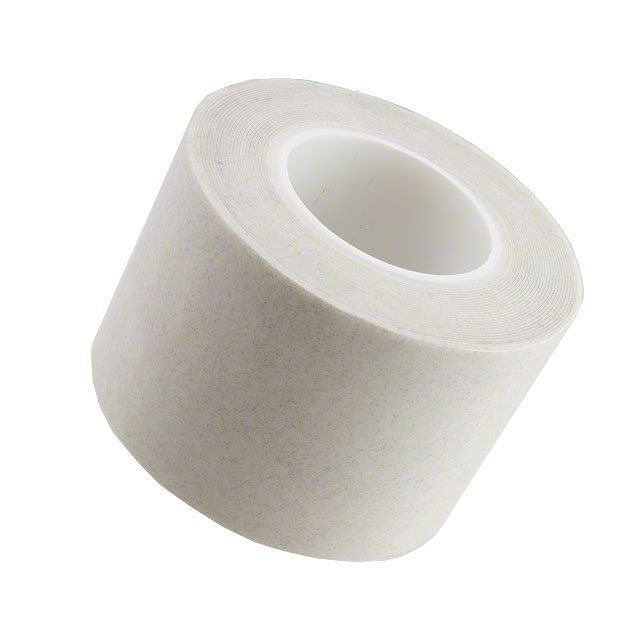

THERM PAD 5M X 50MM GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5590H-05-50-5
Active3M (TC)
THERM PAD 5M X 50MM GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5590H-05-50-5 |
|---|---|
| Adhesive | Tacky - Both Sides |
| Color | Gray |
| Material | Acrylic Elastomer |
| Outline [x] | 5 m |
| Outline [y] | 50 mm |
| Shape | Rectangular |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 77 °F |
| Storage/Refrigeration Temperature [Min] | 68 °F |
| Thermal Resistivity | 0.46 °C/W |
| Thickness | 0.0197 in |
| Thickness | 0.5 mm |
| Type | Interface Pad, Roll |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 179.51 | |
| 10 | $ 167.54 | |||
| 25 | $ 155.58 | |||
| 50 | $ 152.59 | |||
Description
General part information
50MM Series
Thermal Pad Gray 5.00m x 50.00mm Rectangular Tacky - Both Sides
