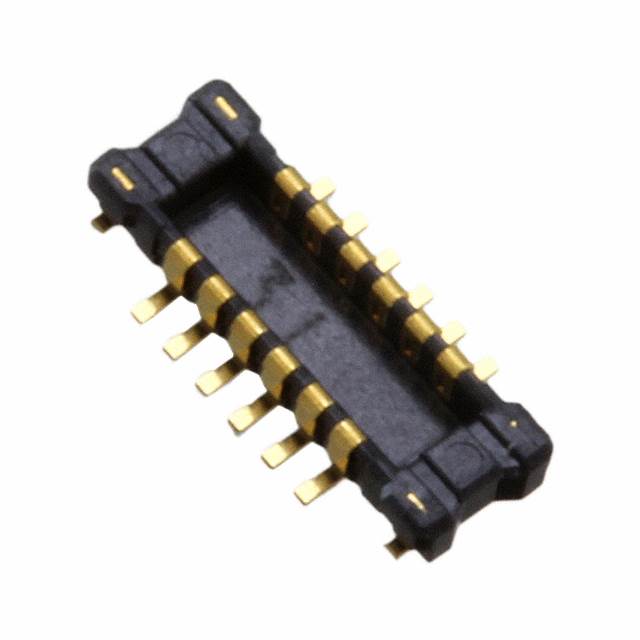

AXE6E1226

Active

Panasonic Electric Works

CONN HDR 12POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 12POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE6E1226

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Solder Retention
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Contact Finish Thickness	Number of Rows	Mated Stacking Heights	Connector Type	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish
Panasonic Electric Works AXE6E1226	Solder Retention	Flash	2	0.8 mm	Header Outer Shroud Contacts	12	Surface Mount	0.016 in	0.4 mm	Gold
Panasonic Electric Works AXE6E1026	Solder Retention	Flash	2	0.8 mm	Header Outer Shroud Contacts	10	Surface Mount	0.016 in	0.4 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 3.99

General part information

12 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
