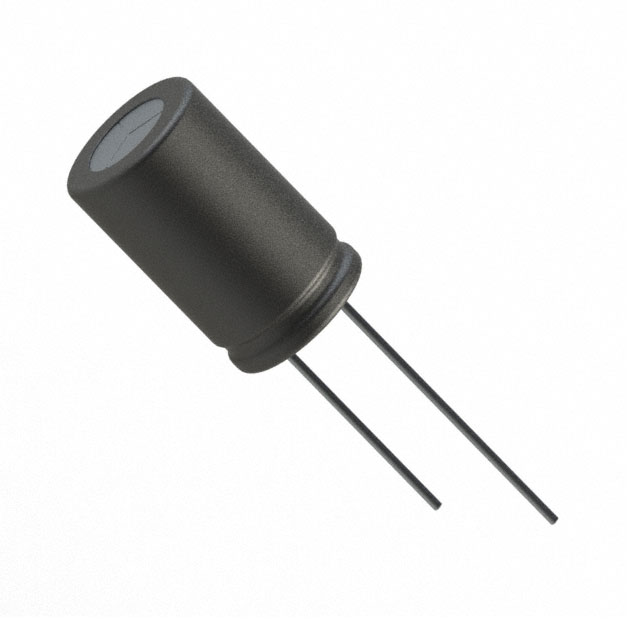

Specification	ESY128M6R3AH8AA

Applications	General Purpose
Capacitance	1200 µF
ESR (Equivalent Series Resistance)	38 mOhm
Height - Seated (Max)	0.709 in
Impedance	38 mOhms
Lead Spacing	0.197 in
Lifetime	4000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	1.43 A, 1.144 A
Size / Dimension Diameter	0.394 in
Tolerance	20 %
Voltage - Rated	6.3 V

ESY128M Series

Part	Ripple Current	Applications	Height - Seated (Max)	Mounting Type	ESR (Equivalent Series Resistance)	Capacitance	Tolerance	Package / Case	Size / Dimension Diameter	Lifetime	Lead Spacing	Polarization	Impedance	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated
KEMET ESY128M6R3AH8AA	1.144 A 1.43 A	General Purpose	0.709 in	Through Hole	38 mOhm	1200 µF	20 %	Can Radial	0.394 in	4000 Hrs	0.197 in	Polar	38 mOhms	-40 °C	105 °C	6.3 V
