4534-632-AL-7

Active

RAF Electronic Hardware

STANDOFF, CLEAR IRIDITE FINISH, ALUMINUM, 6-32, HEX MALE-FEMALE, 12.7 MM, 19.05 MM

Search across all available documentation for this part.

Active

RAF Electronic Hardware

STANDOFF, CLEAR IRIDITE FINISH, ALUMINUM, 6-32, HEX MALE-FEMALE, 12.7 MM, 19.05 MM

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]	Screw, Thread Size	Material	Diameter - Outside	Diameter - Outside	Diameter - Outside [custom]	Threaded/Unthreaded	Type	Plating	Gender	Between Board Height	Between Board Height	Between Board Height	Length - Overall	Length - Overall	Length - Overall	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]
RAF Electronic Hardware 4534-632-AL-7	0.75 in	19.05 mm	0.75 in	#6-32	Aluminum	6.35 mm	0.25 in	0.25 in	Threaded	Hex Standoff	Iridite	Female Male	0.5 in	12.7 mm	0.5 in
RAF Electronic Hardware 4534-632-S-12	0.75 in	19.05 mm	0.75 in	#6-32		6.35 mm	0.25 in	0.25 in	Threaded	Hex Standoff	Zinc	Female Male	0.5 in	12.7 mm	0.5 in
RAF Electronic Hardware 4534-632-S-28				#6-32					Threaded	Hex Standoff	Chromate Zinc	Female	0.5 in	12.7 mm	0.5 in	0.5 in	0.5 in	12.7 mm	Yellow	6.35 mm	0.25 in	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

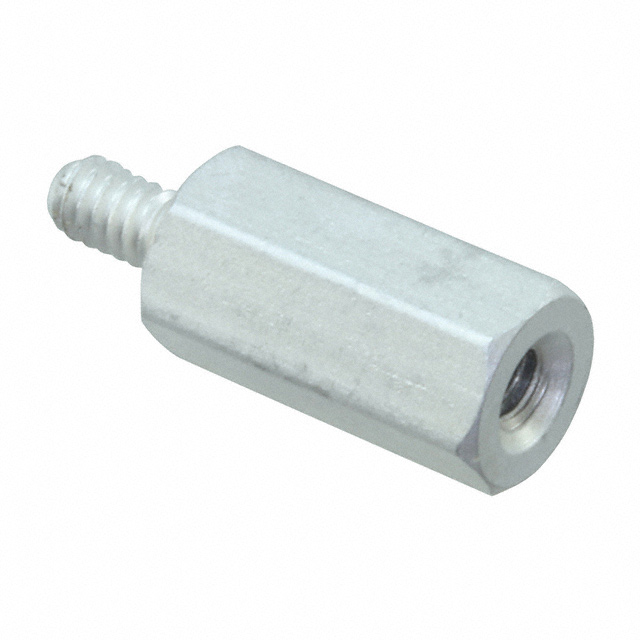

The 4534-632-AL-7 is a 6-32 male to female Hex Standoff made of aluminium with clear Iridite finish. It is used for printed circuit board mounting.
