EN2P2F20

Active

Switchcraft Inc.

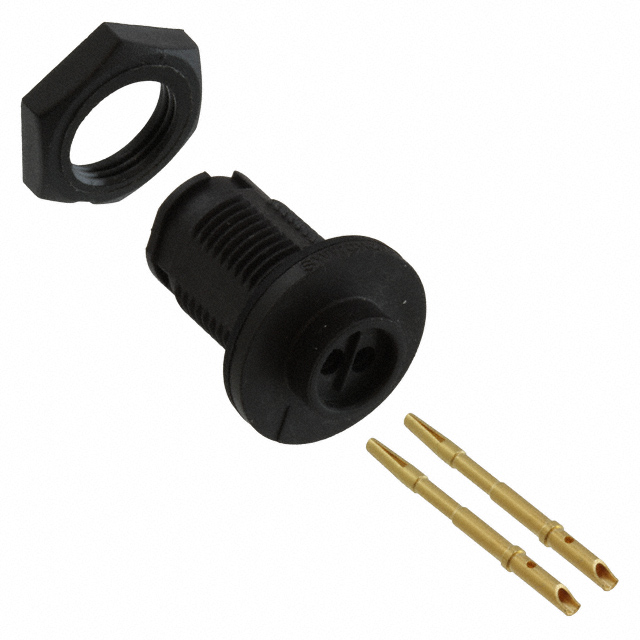

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2P2F20	EN2P2F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3.5 A	3.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Solder, Crimp, Solder Cup
Voltage Rating	250 VAC	250 VAC

CONN CIRCULAR SKT 2 POS SOLDER CUP ST PANEL MOUNT 2 TERMINAL 1 PORT BULK

Part	Orientation	Fastening Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Shielding	Insert Material	Contact Finish - Mating	Voltage Rating	Primary Material	Material Flammability Rating	Applications	Termination	Contact Material	Number of Positions	Connector Type	Mounting Type	Mounting Feature	Color
Switchcraft Inc. EN2P2F20P	Keyed	Bayonet Lock	IP66, IP67, IP68	85 °C	-40 °C	3.5 A	Unshielded	Elastomer	Gold	250 VAC	Plastic	UL94 V-0	Communication Systems, Industrial, Marine, Medical	Solder	Copper Alloy	2	Receptacle, Female Sockets	Panel Mount, Through Hole	Bulkhead - Front Side Nut	Black
Switchcraft Inc. EN2P2F20	Keyed	Bayonet Lock	IP66, IP67, IP68	85 °C	-40 °C	3.5 A	Unshielded	Elastomer	Gold	250 VAC	Plastic	UL94 V-0	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Copper Alloy	2	Receptacle, Female Sockets		Bulkhead - Front Side Nut	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
