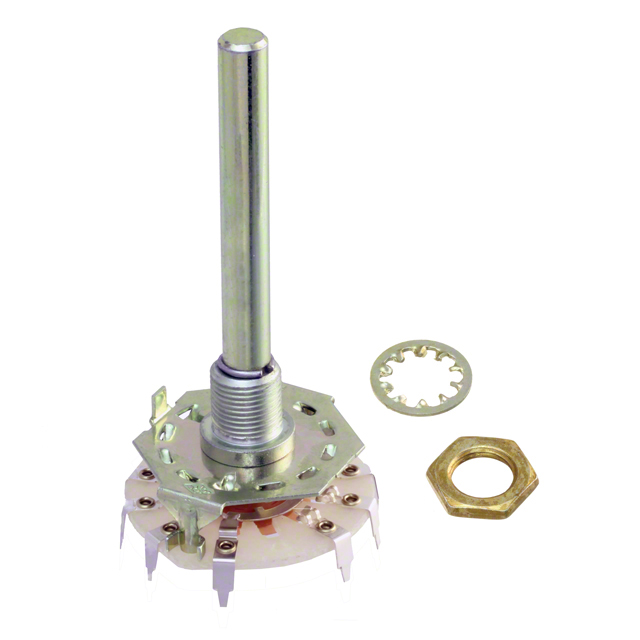

D5G0204N

Active

ELECTROSWITCH

SWITCH ROTARY 4POS 500MA 115V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 4POS 500MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	D5G0204N

Actuator Length [x]	47.63 mm
Actuator Type	Round
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	DP4T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	500 mA, 1.5 A
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions	4
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Actuator Length [x]	Contact Finish	Contact Material	Number of Poles per Deck	Termination Style	Circuit per Deck	Number of Positions	Panel Cutout Dimensions [diameter]	Contact Timing	Current Rating (Amps)	Number of Decks [custom]	Index Stops	Angle of Throw	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Actuator Type [diameter]
ELECTROSWITCH D5G0204N	47.63 mm	Silver	Brass	2	Solder Lug	DP4T	4	9.78 mm	Non-Shorting	1.5 A 500 mA	1	Fixed	30 °	28 V	115 V	Round	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.26

General part information

Rotary Switch 4 Position DP4T 500mA (AC), 1.5A (DC) 115 VAC Panel Mount
