A7MMB-2510G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMP25B/AE25G/AMP25B
Deep-Dive with AI
Search across all available documentation for this part.
A7MMB-2510G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMP25B/AE25G/AMP25B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7MMB-2510G | A7MMB Series |
|---|---|---|
| 1st Connector | Plug, Male Pins | Plug, Male Pins |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | - | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB25 | DB9, DB15, DB25, DB37 |
| Usage | Patch | Patch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.37 | |
| 10 | $ 23.94 | |||
| 25 | $ 22.07 | |||
| 50 | $ 20.75 | |||
| 100 | $ 19.52 | |||
| 250 | $ 19.06 | |||
| 500 | $ 19.06 | |||
A7MMB Series
CABLE D-SUB-AMP09B/AE09G/AMP09B
| Part | 1st Connector | Shielding | Type | Length | Length | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | 2nd Connector | Usage | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7MMB-0906G | Plug, Male Pins | Unshielded | DB9 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | Gold | 9 | Plug, Male Pins | Patch | |
TE Connectivity AMP Connectors A7MMB-1510G | Plug, Male Pins | Unshielded | DB15 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Gold | 15 | Plug, Male Pins | Patch | |
TE Connectivity AMP Connectors A7MMB-0910M | Plug, Male Pins | Unshielded | DB9 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Gold | 9 | Plug, Male Pins | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7MMB-0910G | Plug, Male Pins | Unshielded | DB9 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Gold | 9 | Plug, Male Pins | Patch | |
TE Connectivity AMP Connectors A7MMB-0906M | Plug, Male Pins | Unshielded | DB9 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | Gold | 9 | Plug, Male Pins | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7MMB-2510G | Plug, Male Pins | Unshielded | DB25 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Gold | Plug, Male Pins | Patch | ||
TE Connectivity AMP Connectors A7MMB-1506G | Plug, Male Pins | Unshielded | DB15 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | Gold | 15 | Plug, Male Pins | Patch | |
TE Connectivity AMP Connectors A7MMB-3706M | Plug, Male Pins | Unshielded | DB37 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | Gold | 37 | Plug, Male Pins | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7MMB-1510M | Plug, Male Pins | Unshielded | DB15 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Gold | 15 | Plug, Male Pins | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7MMB-2506M | Plug, Male Pins | Unshielded | DB25 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | Gold | Plug, Male Pins | Patch | Multiple, Ribbon |
Description
General part information
A7MMB Series

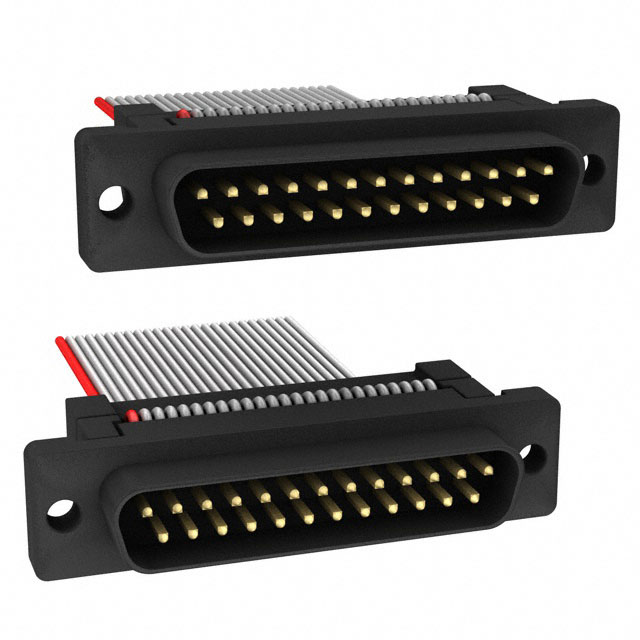

D-Sub Cable Assembly DB25 Gray, Ribbon 10.00' (3.05m) Plug, Male Pins to Plug, Male Pins Unshielded
