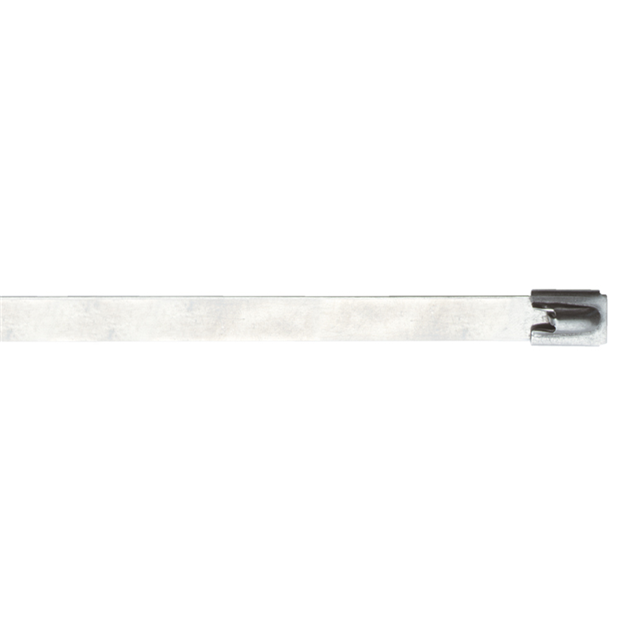

TBC840

Active

Hayata

CBL TIE LOCKING 200LB 33"

Deep-Dive with AI

Search across all available documentation for this part.

TBC840

Active

Hayata

CBL TIE LOCKING 200LB 33"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 1.89
		1000	$ 1.87
		5000	$ 1.78
		10000	$ 1.73
		50000	$ 1.70

Description

General part information

TBC Series

Standard, Locking 10.00" (254.00mm) 0.180" (4.57mm) 200 lbs (90.72 kg)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TBC840	TBC Series

Bundle Diameter	254 mm	254 mm
Bundle Diameter	10 in	10 in
Bundle Diameter	-	1 - 14 in
Bundle Diameter	-	25.4 - 355.6 mm
Features	Chemical Resistant, UV Resistant	Chemical Resistant, UV Resistant
Length - Actual	-	3.94 - 5.91 "
Length - Actual	-	1.2 - 360 mm
Length - Actual	-	0.656 - 3.94 ft
Length - Actual	-	7.87 "
Length - Actual [x]	2.756 ft	0.328 - 3.28 ft
Length - Actual [x]	839.98 mm	1 - 839.98 mm
Length - Approximate	33 in	4 - 47 in
Length - Approximate	-	6 in
Material	Stainless Steel 316	Stainless Steel 316
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	200 lbs	200 lbs
Tensile Strength	90.72 kg	90.72 kg
Width [x]	0.18 in	0.18 in
Width [x]	4.57 mm	4.57 mm
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

TBC Series

CBL TIE LOCKING 200LB 33"

Part	Wire/Cable Tie Type	Mounting Type	Tensile Strength	Tensile Strength	Length - Actual [x]	Length - Actual [x]	Width [x]	Width [x]	Length - Approximate	Bundle Diameter	Bundle Diameter	Features	Material	Length - Approximate [x]	Length - Actual [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Actual	Length - Actual	Length - Actual
Hayata TBC840	Locking, Standard	Free Hanging (In-Line)	200 lbs	90.72 kg	2.756 ft	839.98 mm	0.18 in	4.57 mm	33 in	254 mm	10 in	Chemical Resistant, UV Resistant	Stainless Steel 316
Hayata TBC150	Locking, Standard	Free Hanging (In-Line)	200 lbs	90.72 kg	0.492 ft	150 mm	0.18 in	4.57 mm				Chemical Resistant, UV Resistant	Stainless Steel 316	6 in	5.91 "	1.5 in	38.1 mm
Hayata TBC360	Locking, Standard	Free Hanging (In-Line)	200 lbs	90.72 kg	1.181 ft		0.18 in	4.57 mm	14 in			Chemical Resistant, UV Resistant	Stainless Steel 316			4 in	101.6 mm	360 mm
Hayata TBC680	Locking, Standard	Free Hanging (In-Line)	200 lbs	90.72 kg	2.231 ft	679.96 mm	0.18 in	4.57 mm	26.5 in			Chemical Resistant, UV Resistant	Stainless Steel 316			8 in	203.2 mm
Hayata TBC100	Locking, Standard	Free Hanging (In-Line)	200 lbs	90.72 kg	0.328 ft	100 mm	0.18 in	4.57 mm	4 in			Chemical Resistant, UV Resistant	Stainless Steel 316		3.94 in	1 "	25.4 mm
Hayata TBC200	Locking, Standard	Free Hanging (In-Line)	200 lbs	90.72 kg			0.18 in	4.57 mm	8 in			Chemical Resistant, UV Resistant	Stainless Steel 316			2 in	50.8 mm	200 mm	0.656 ft	7.87 "
Hayata TBC1000	Locking, Standard	Free Hanging (In-Line)	200 lbs	90.72 kg	3.28 ft	1 m	0.18 in	4.57 mm	39 in			Chemical Resistant, UV Resistant	Stainless Steel 316			12 in	304.8 mm
Hayata TBC1200	Locking, Standard	Free Hanging (In-Line)	200 lbs	90.72 kg			0.18 in	4.57 mm	47 in			Chemical Resistant, UV Resistant	Stainless Steel 316			14 in	355.6 mm	1.2 m	3.94 ft
