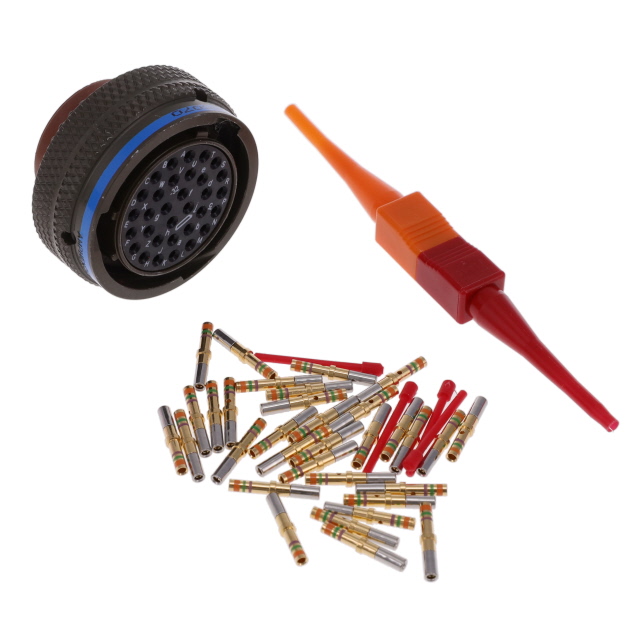

MS27473T18B32S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 32POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 32POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27473T18B32S

Applications	Military, Aviation
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series II
Shell Material	Aluminum
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Shielding	Unshielded
Termination	Crimp

Part	Shell Material	Connector Type	Insert Material	Grade	Shielding	Primary Material	Contact Material	Mounting Type	Ingress Protection	Contact Finish - Mating	Applications	Termination	Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Fastening Type	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
Amphenol Aerospace Operations MS27473T18B32S	Aluminum	Female Sockets Plug	Plastic	Military	Unshielded	Metal	Copper Alloy	Free Hanging (In-Line)	Environment Resistant	Gold	Aviation Military	Crimp	Olive Drab	32	18	-65 ░C	347 °F	MIL-DTL-38999 Series II	Bayonet Lock	N	1.27 µm	50 µin	Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 Position Circular Connector Plug, Female Sockets Crimp
