10326-E2W0-008

Active

JE150219887 10326-E2W0-008=26/MDR RECP SHELL/BLACK

Search across all available documentation for this part.

Active

JE150219887 10326-E2W0-008=26/MDR RECP SHELL/BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

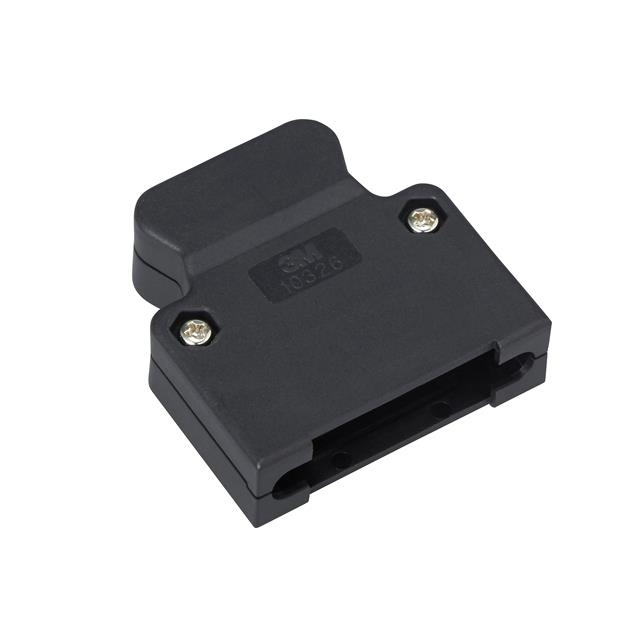

26 Position Two Piece Backshell Connector Black 180°

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	10326-E2W0-008	10326 Series

	-	-
Accessory Type	Two Piece Backshell	Two Piece Backshell, Two Piece Backshell and Cover
Cable Exit	180 °	180 °
Cable Type	Round	Round, Flat
Color	Black	Black, Silver, Beige, Gray, Dark
Features	-	Latch Lock, Mating Screws 4-40, Mating Screws M2.6
Hardware	Assembly Hardware	Assembly Hardware, Strain Relief, Gasket
Material	Acrylonitrile Butadiene Styrene (ABS)	Polybutylene Terephthalate (PBT), Glass Filled, Metal, Zinc, Acrylonitrile Butadiene Styrene (ABS), Zinc Alloy, Metal
Material	-	Plastic, Steel
Material	-	Metal
Number of Positions	26	26
Plating	-	Nickel
Primary Material	Plastic	Plastic, Metal
Shielding	-	Unshielded, Shielded

CONNECTOR BACKSHELL, SOLDER PLUG JUNCTION BACKSHELL, 26 POSITION CONNECTOR, 180°

Part	Cable Exit	Primary Material	Color	Material	Accessory Type	Hardware	Features	Number of Positions	Cable Type	Shielding	Plating	Material [custom]	Material [custom]
3M 10326-52F0-008	180 °	Plastic	Black	Polybutylene Terephthalate (PBT), Glass Filled	Two Piece Backshell	Assembly Hardware, Strain Relief	Latch Lock	26	Round	Unshielded
3M 10326-1230-00	180 °	Metal	Silver	Metal, Zinc	Two Piece Backshell	Assembly Hardware, Gasket	Latch Lock	26	Flat	Shielded	Nickel
3M 10326-E2W0-008	180 °	Plastic	Black	Acrylonitrile Butadiene Styrene (ABS)	Two Piece Backshell	Assembly Hardware		26	Round
3M 10326-32J0-000	180 °	Metal	Beige		Two Piece Backshell and Cover		Mating Screws 4-40	26	Round	Shielded		Plastic, Steel	Metal
3M 10326-32J0-006	180 °	Metal	Black		Two Piece Backshell and Cover		Mating Screws 4-40	26	Round	Shielded		Plastic, Steel	Metal
3M 10326-52A0-008	180 °	Plastic	Black	Polybutylene Terephthalate (PBT), Glass Filled	Two Piece Backshell	Assembly Hardware, Strain Relief	Mating Screws M2.6	26	Round	Unshielded
3M 10326-3210-001	180 °	Metal	Dark, Gray		Two Piece Backshell and Cover		Latch Lock	26	Round	Shielded		Plastic, Steel	Metal
3M 10326-3281-000-8
3M 10326-A200-00	180 °	Metal	Silver	Metal, Zinc Alloy	Two Piece Backshell		Latch Lock	26	Round	Shielded	Nickel
3M 10326-C200-00	180 °	Metal	Silver	Zinc Alloy	Two Piece Backshell		Latch Lock	26	Round	Shielded	Nickel
