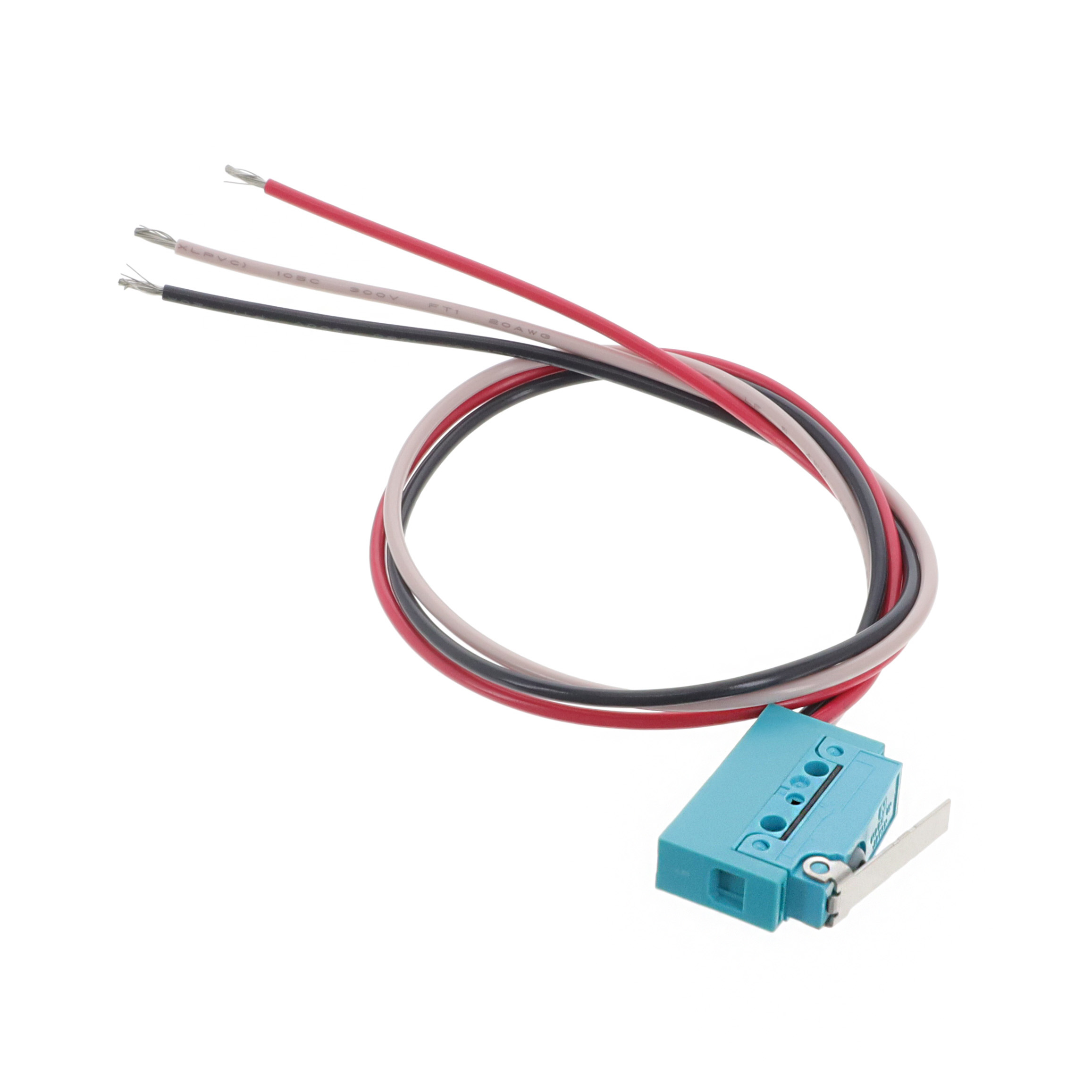

ABS461150

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 2A 125V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 2A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Voltage Rating - AC	Current Rating (Amps)	Operating Force	Mechanical Life	Switch Function	Voltage Rating - DC	Release Force	Pretravel	Pretravel	Operating Position	Operating Position	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Circuit	Differential Travel	Differential Travel	Ingress Protection	Termination Style	Overtravel	Overtravel
Panasonic Electric Works ABS461151	125 V	100 mA	60 gf	5000000 Cycles	On-Mom	30 V	4.079 gf	0.1 in	2.5 mm	8.8 mm	0.345 in	200000 Cycles	85 °C	-40 °C	Lever, Straight	Chassis Mount	SPDT	0.5 mm	0.02 in	IP67 - Dust Tight, Waterproof	Wire Leads	0.032 in	0.81 mm
Panasonic Electric Works ABS461150	125 V	2 A	60 gf	5000000 Cycles	On-Mom	30 V	4.079 gf	0.1 in	2.5 mm	8.8 mm	0.345 in	50000 Cycles	85 °C	-40 °C	Lever, Straight	Chassis Mount	SPDT	0.5 mm	0.02 in	IP67 - Dust Tight, Waterproof	Wire Leads	0.032 in	0.81 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
