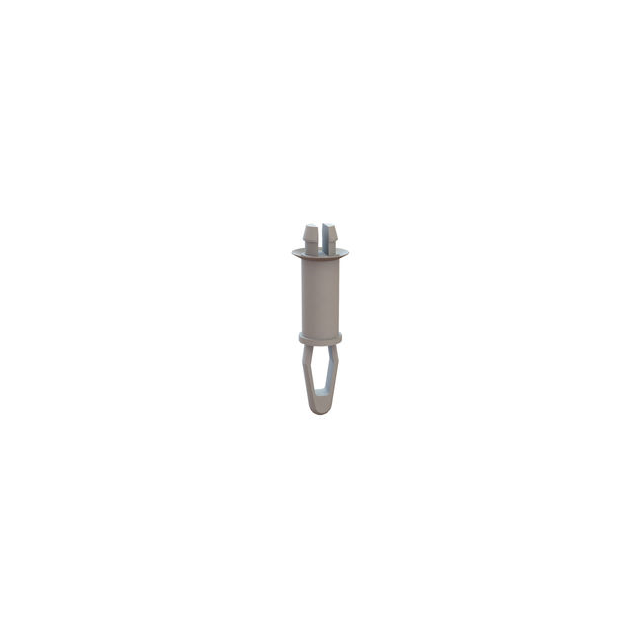

27TMSP00375
ActiveEssentra Access Solutions
PCB SUPPORT, SNAP FIT, .156/.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
27TMSP00375
ActiveEssentra Access Solutions
PCB SUPPORT, SNAP FIT, .156/.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 27TMSP00375 |
|---|---|
| Between Board Height | 0.375 in |
| Between Board Height | 0.375 in |
| Between Board Height | 9.53 mm |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 3.18 mm |
| Mounting Panel Thickness | 0.063 in |
| Mounting Panel Thickness | 1.59 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.156 in |
| Support Hole Diameter [diameter] | 3.96 mm |
| Support Panel Thickness | 1.59 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.18 | |
| 5 | $ 0.16 | |||
| 10 | $ 0.13 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
Description
General part information
27TMSP Series
Board Support Snap Lock / Snap Lock Nylon 0.375" (9.53mm) 3/8"
