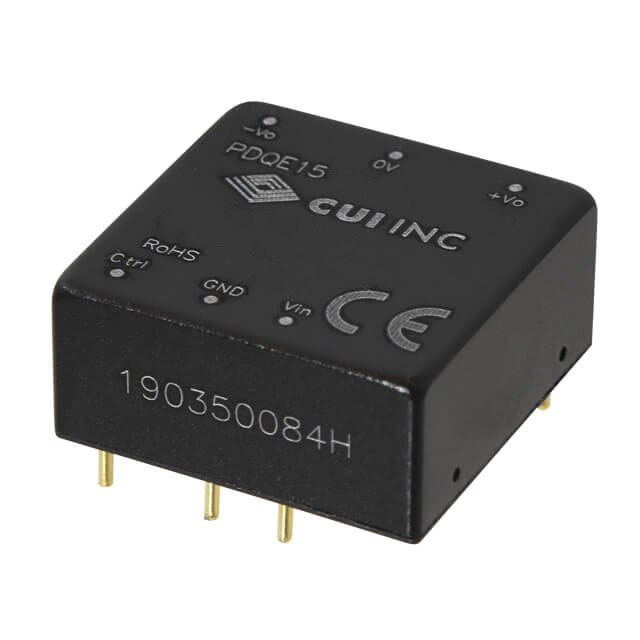

PDQE15-Q48-S24-D

CUI Inc.

DC DC CONVERTER 24V 15W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 24V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Type	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Mounting Type	Approval Agency	Voltage - Output 2	Voltage - Output 1	Voltage - Input (Min) [Min]	Applications	Voltage - Isolation	Number of Outputs	Efficiency	Current - Output (Max) [Max]
CUI Inc. PDQE15-Q48-D12-D	-40 °C	105 C	OCP OVP Remote On/Off SCP	6-DIP Module	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	55024 55032	Isolated Module	75 V	625 mA	625 mA	15 W	Through Hole	EN	-12 V	12 V	18 V	ITE (Commercial)	1.5 kV	2	90 %
CUI Inc. PDQE15-Q48-S24-D	-40 °C	105 C	OCP OVP Remote On/Off SCP	6-DIP Module	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	55024 55032 Class A 62368-1	Isolated Module	75 V			15 W	Through Hole	CB Scheme EN IEC UL		24 V	18 V	ITE (Commercial)	1.5 kV	1	91 %	625 mA
CUI Inc. PDQE15-Q24-D12-D	-40 °C	105 C	OCP OVP Remote On/Off SCP	6-DIP Module	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	55024 55032	Isolated Module	36 V	625 mA	625 mA	15 W	Through Hole	EN	-12 V	12 V	9 V	ITE (Commercial)	1.5 kV	2	90 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 625mA 18V - 75V Input

Technical documentation and resources

No documents available
