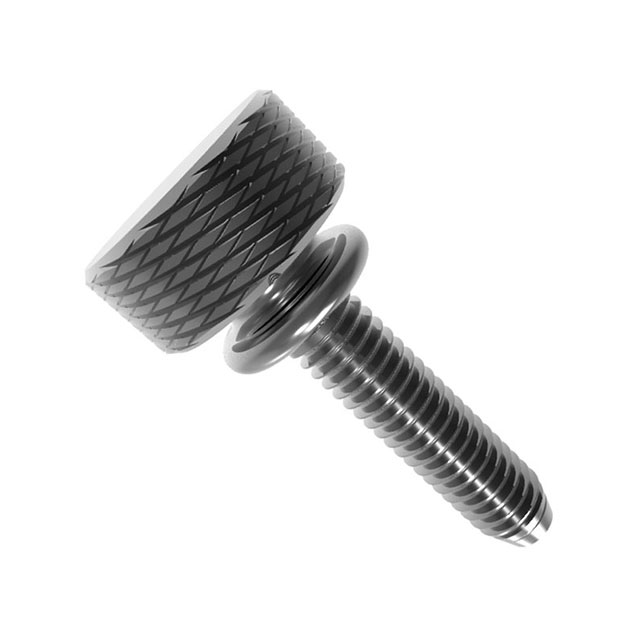

M3452-SS
ActiveRAF Electronic Hardware
13MM HD X 9MM TL X M6
Deep-Dive with AI
Search across all available documentation for this part.
M3452-SS
ActiveRAF Electronic Hardware
13MM HD X 9MM TL X M6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3452-SS |
|---|---|
| Head Diameter [diameter] | 13 mm |
| Head Diameter [diameter] | 0.512 in |
| Head Height | 0.236 in |
| Head Height | 6 mm |
| Length - Below Head [x] | 0.472 in |
| Length - Below Head [x] | 12 mm |
| Length - Overall [x] | 0.709 " |
| Length - Overall [x] | 18 mm |
| Material | Stainless Steel |
| Screw Head Type | Knob |
| Thread Size | M6x1 |
| Type | Thumb Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.02 | |
| 5 | $ 5.87 | |||
| 10 | $ 5.71 | |||
| 25 | $ 5.55 | |||
| 50 | $ 5.23 | |||
| 100 | $ 5.07 | |||
| 250 | $ 4.60 | |||
| 500 | $ 4.44 | |||
| 1000 | $ 4.28 | |||
Description
General part information
M3452 Series
M6x1 Knob Thumb Screw Drive Stainless Steel
Documents
Technical documentation and resources
No documents available
