M2018TNW01-DA

Obsolete

NKK Switches

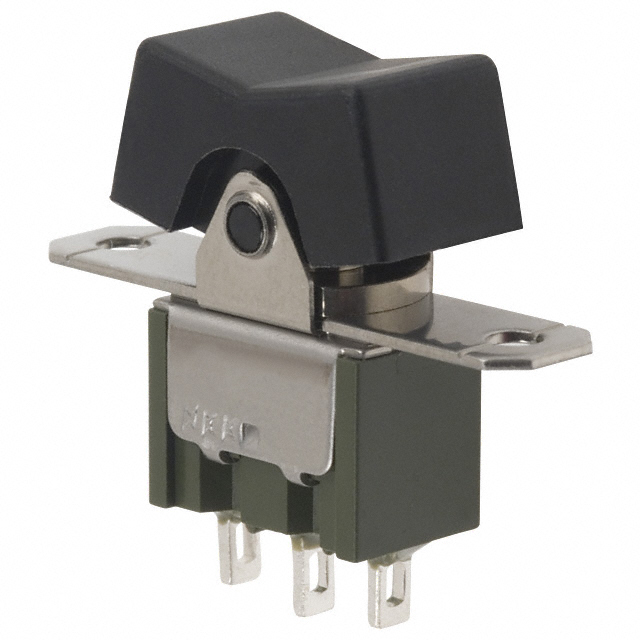

SWITCH ROCKER SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2018TNW01-DA

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2018TNW01-DA

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	17.8 mm
Panel Cutout Dimensions [y]	10.1 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2018TN Series

Part	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Color - Actuator/Cap	Circuit	Current Rating (Amps)	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Approval Agency	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Features
NKK Switches M2018TNG03-GB	28 V	Mom-Off-Mom	28 V	White	SPDT	0.4 VA	50000 Cycles	PC Pin	-30 ░C	85 °C	Paddle	CSA UL	No Marking	12.4 mm	12.7 mm	Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNW01-DB	30 V	Mom-Off-Mom	125 V	White	SPDT	3 A 6 A	25000 Steps	Solder Lug	-30 ░C	85 °C	Concave (Standard V)	CSA UL	No Marking	10.1 mm	17.8 mm	Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNG01-DC	28 V	Mom-Off-Mom	28 V	Red	SPDT	0.4 VA	50000 Cycles	Solder Lug	-30 ░C	85 °C	Concave (Standard V)	CSA UL	No Marking	10.1 mm	17.8 mm	Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNW03-EC	30 V	Mom-Off-Mom	125 V	Red	SPDT	3 A 6 A	25000 Steps	PC Pin	-30 ░C	85 °C	Paddle	CSA UL	No Marking	10.1 mm	17.8 mm	Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNW01-GA	30 V	Mom-Off-Mom	125 V	Black	SPDT	3 A 6 A	25000 Steps	Solder Lug	-30 ░C	85 °C	Paddle	CSA UL	No Marking	12.4 mm	12.7 mm	Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNW01-GB	30 V	Mom-Off-Mom	125 V	White	SPDT	3 A 6 A	25000 Steps	Solder Lug	-30 ░C	85 °C	Paddle	CSA UL	No Marking	12.4 mm	12.7 mm	Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNW01	30 V	Mom-Off-Mom	125 V		SPDT	3 A 6 A	25000 Steps	Solder Lug	-30 ░C	85 °C	Actuator Arm Cap Required	CSA UL	Varies by Cap			Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNG01-DA	28 V	Mom-Off-Mom	28 V	Black	SPDT	0.4 VA	50000 Cycles	Solder Lug	-30 ░C	85 °C	Concave (Standard V)	CSA UL	No Marking	10.1 mm	17.8 mm	Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNW01-DA	30 V	Mom-Off-Mom	125 V	Black	SPDT	3 A 6 A	25000 Steps	Solder Lug	-30 ░C	85 °C	Concave (Standard V)	CSA UL	No Marking	10.1 mm	17.8 mm	Flange Panel Mount	Epoxy Sealed Terminals
NKK Switches M2018TNW01-FB	30 V	Mom-Off-Mom	125 V	White	SPDT	3 A 6 A	25000 Steps	Solder Lug	-30 ░C	85 °C	Concave (Standard V)	CSA UL	No Marking	12.4 mm	12.7 mm	Flange Panel Mount	Epoxy Sealed Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.59
		10	$ 7.41
		25	$ 6.99
		40	$ 6.78

Description

General part information

M2018TN Series

Rocker Switch SPDT 6A (AC), 3A (DC) 125 V Panel Mount, Flange

Documents

Technical documentation and resources
