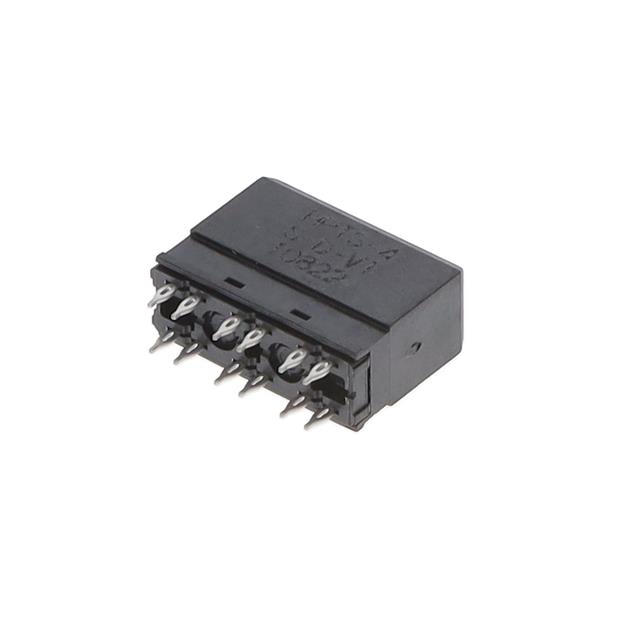

HPTS-4-S-D-VT - HPTS-4-S-D-VT

HPTS-4-S-D-VT

Active
Samtec Inc.

HIGH SPEED / MODULAR CONNECTORS 3.20 MM XCEDE 4 PAIR HD POWER MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+2
HPTS-4-S-D-VT - HPTS-4-S-D-VT

HPTS-4-S-D-VT

Active
Samtec Inc.

HIGH SPEED / MODULAR CONNECTORS 3.20 MM XCEDE 4 PAIR HD POWER MODULE

Deep-Dive with AI

DocumentsDatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationHPTS-4-S-D-VT
ColorBlack
Connector StyleXCede®
Connector TypeReceptacle, Female Blade Sockets
Connector UsageBackplane
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact Layout, Typical6 Power
Mounting TypeThrough Hole
Number of Positions6
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
TerminationPress-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 24.59
10$ 18.96
25$ 17.17
40$ 16.33
80$ 15.20
230$ 13.68
440$ 12.85
NewarkEach 1$ 16.22
10$ 15.02
25$ 13.51
50$ 13.13
100$ 11.55
250$ 10.79
500$ 10.57
SagerN/A 1$ 13.74
10$ 13.00
25$ 12.52
50$ 12.21
100$ 10.02
250$ 9.29
500$ 7.83
1000$ 6.38

Description

General part information

HPTS-4-S Series

High Speed / Modular Connectors 3.20 mm Xcede 3 pair HD Power Module
