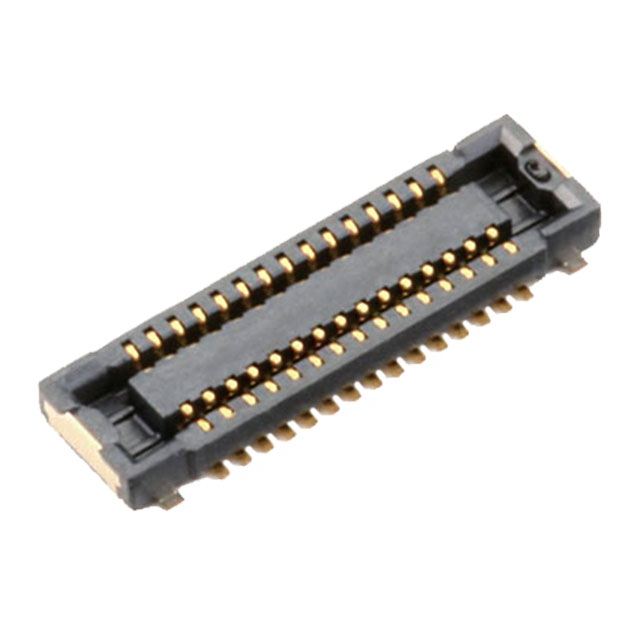

AXF5A3012A

Active

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5A3012A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Features	Height Above Board [z]	Height Above Board [z]	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Number of Rows	Mated Stacking Heights	Mounting Type
Panasonic Electric Works AXF5A3012A	Solder Retention	0.03 in	0.75 mm	Socket Center Strip Contacts	0.35 mm	0.014 in	Gold	30	2	0.8 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Socket, Center Strip Contacts Surface Mount Gold
