TDS09SGRSTR04
ActiveTE Connectivity Raychem Cable Protection

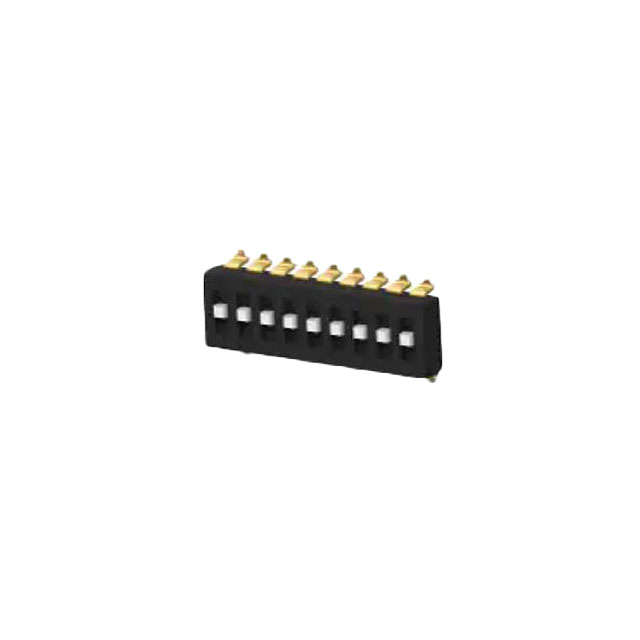

SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
TDS09SGRSTR04
ActiveTE Connectivity Raychem Cable Protection
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TDS09SGRSTR04 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Nylon, Polyamide (PA) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Height Above Board | 3.7 mm |
| Height Above Board | 0.146 in |
| Length | 24.02 mm |
| Length | 0.946 in |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 9 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1800 | $ 1.98 | |
Description
General part information
TDS09 Series
Dip Switch SPST 9 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
