L717TWB13W3P

Active

Amphenol ICC (Commercial Products)

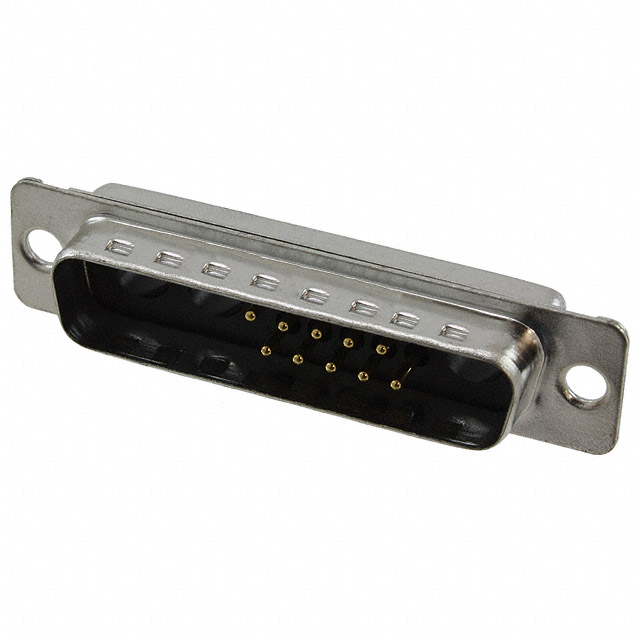

CONN D-SUB PLUG 13POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717TWB13W3P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 13POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717TWB13W3P

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	13
Number of Positions [custom]	3
Number of Positions [custom]	10
Number of Rows	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Voltage Rating	300 VDC

L717TWB13 Series

Part	Mounting Type	Backset Spacing	Backset Spacing	Contact Type	Number of Rows	Contact Finish	Contact Material	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Features	Number of Positions [custom]	Number of Positions [custom]	Color	Connector Style	Flange Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions
Amphenol ICC (Commercial Products) L717TWB13W3PMP3SV4RRM6	Panel Mount Right Angle Through Hole	0.319 in	8.1 mm	Signal and Power	2	Gold	Brass	300 VDC	7.5 A	16 µin	0.41 µm	Solder	155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets	10	3	Black	Combo D-Sub	4-40 Board Side
Amphenol ICC (Commercial Products) L717TWB13W3PP3SYRM54	Panel Mount Through Hole			Signal and Power	2	Gold	Brass	300 VDC	7.5 A	16 µin	0.41 µm	Solder	155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Board Lock Grounding Indents	10	3	Black	Combo D-Sub	4-40 Board Side
Amphenol ICC (Commercial Products) L717TWB13W3PMP2SV4FRM6	Panel Mount Right Angle Through Hole	0.319 in	8.1 mm	Signal and Power	2	Gold	Brass	300 VDC	7.5 A	16 µin	0.41 µm	Solder	155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets	10	3	Black	Combo D-Sub	Female Screwlock (4-40) Mating Side
Amphenol ICC (Commercial Products) L717TWB13W3PCSY	Panel Mount Through Hole			Coax Signal	2	Gold	Brass	150 VDC 300 VDC	0.5 A 7.5 A	16 µin	0.41 µm	Solder	155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Grounding Indents Shielded			Black	Combo D-Sub	Housing/Shell (Unthreaded)	10	3
Amphenol ICC (Commercial Products) L717TWB13W3PHP2SV	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Signal and Power	2	Gold	Brass	300 VDC	7.5 A	16 µin	0.41 µm	Solder	155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Grounding Indents	10	3	Black	Combo D-Sub	Housing/Shell (Unthreaded)
Amphenol ICC (Commercial Products) L717TWB13W3P					2	Gold	Brass	300 VDC	7.5 A				155 °C	-55 °C	Thermoplastic Glass Filled	13C3 13W3 B DB	3	Male Pins Plug	Grounding Indents			Black	Combo D-Sub	Housing/Shell (Unthreaded)	10		3	13
Amphenol ICC (Commercial Products) L717TWB13W3PA514					2	Gold	Brass	300 VDC	7.5 A	16 µin	0.41 µm		155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Grounding Indents Guide Pin			Black	Combo D-Sub	Housing/Shell (Unthreaded)	10		3	13
Amphenol ICC (Commercial Products) L717TWB13W3PP2SYRM84	Panel Mount Through Hole			Signal and Power	2	Gold	Brass	300 VDC	7.5 A	16 µin	0.41 µm	Solder	155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Board Lock Grounding Indents	10	3	Black	Combo D-Sub	Female Screwlock (4-40) Mating Side
Amphenol ICC (Commercial Products) L717TWB13W3PMCSV4FRM6	Panel Mount Right Angle Through Hole	0.319 in	8.1 mm	Coax Signal	2	Gold	Brass	300 VDC		16 µin	0.41 µm	Solder	155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets			Black	Combo D-Sub	Female Screwlock (4-40) Mating Side	10	3
Amphenol ICC (Commercial Products) L717TWB13W3PMCSV4F	Panel Mount Right Angle Through Hole	0.319 in	8.1 mm	Coax Signal	2	Gold	Brass	300 VDC		16 µin	0.41 µm	Solder	155 °C	-55 °C	Thermoplastic	13C3 13W3 B DB	3	Male Pins Plug	Grounding Indents			Black	Combo D-Sub	Female Screwlock (4-40) Mating Side	10	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.40
		10	$ 9.36
		100	$ 8.36
		1000	$ 6.19

Description

General part information

L717TWB13 Series

13 (10 + 3 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
