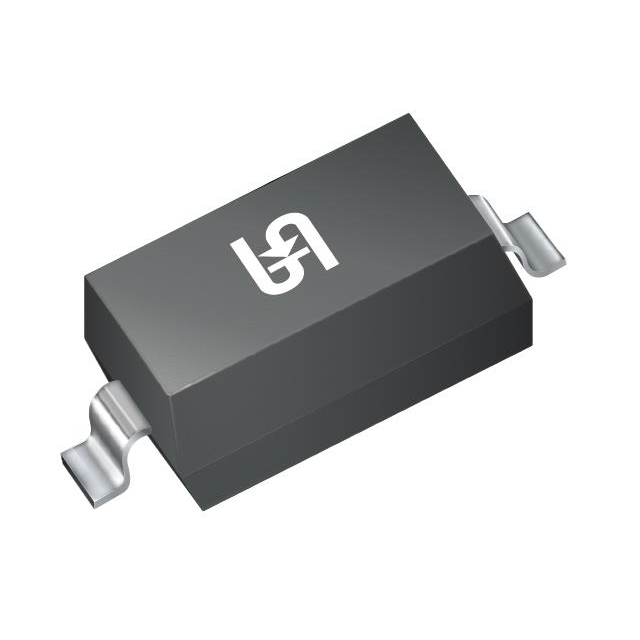

RB751V-40 RRG
ActiveTaiwan Semiconductor Corporation
DIODE SCHOTTKY 40V 30MA SOD323
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB751V-40 RRG |
|---|---|
| Capacitance @ Vr, F | 2 pF |
| Current - Average Rectified (Io) | 30 mA |
| Current - Reverse Leakage @ Vr | 500 nA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | SOD-323, SC-76 |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | SOD-323 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 370 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.31 | ||
| 10 | $ 0.21 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| Tape & Reel (TR) | 3000 | $ 0.05 | ||
| 6000 | $ 0.05 | |||
| 9000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 75000 | $ 0.03 | |||
| 150000 | $ 0.03 | |||
Description
General part information
RB751 Series
Diode 40 V 30mA Surface Mount SOD-323
